Product Description

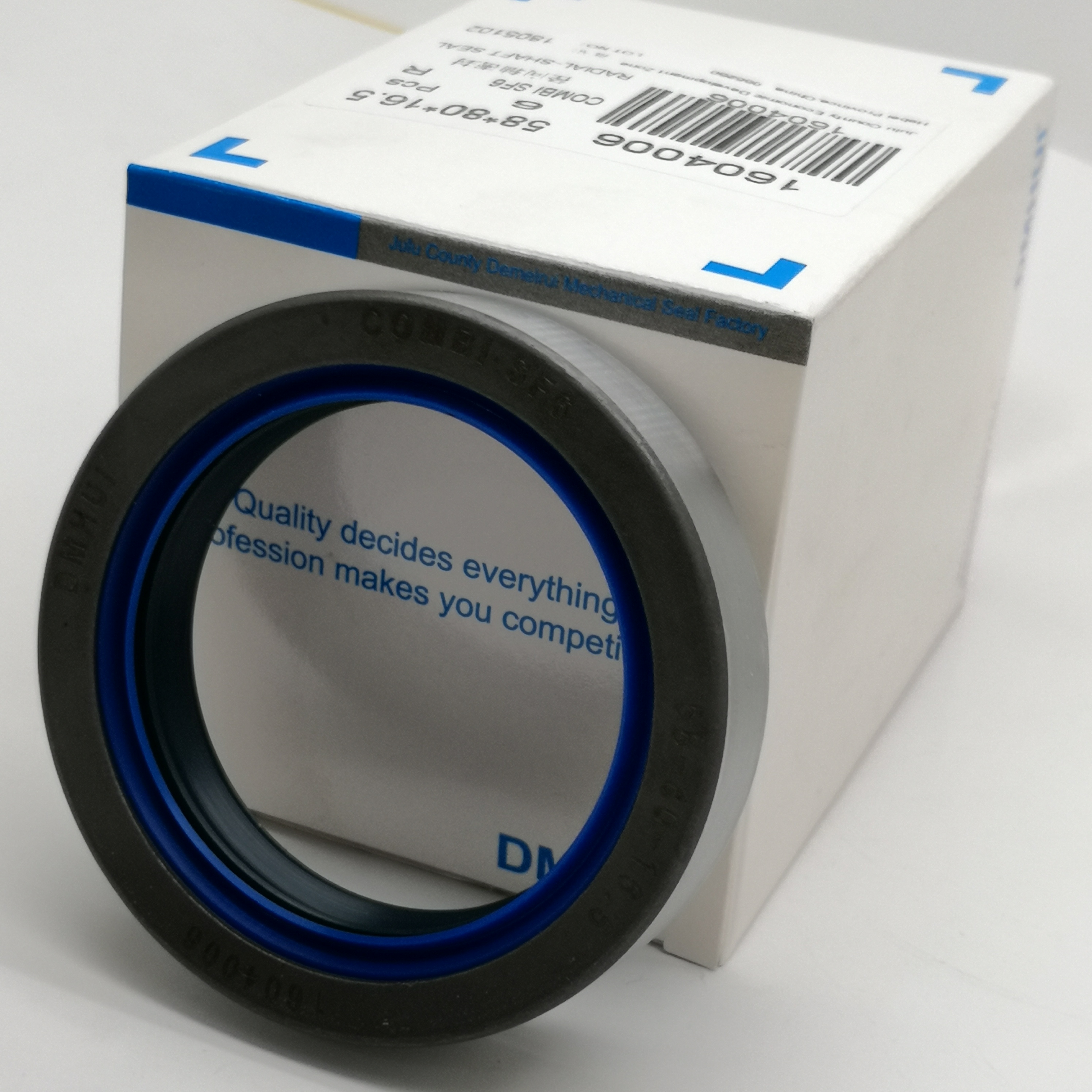

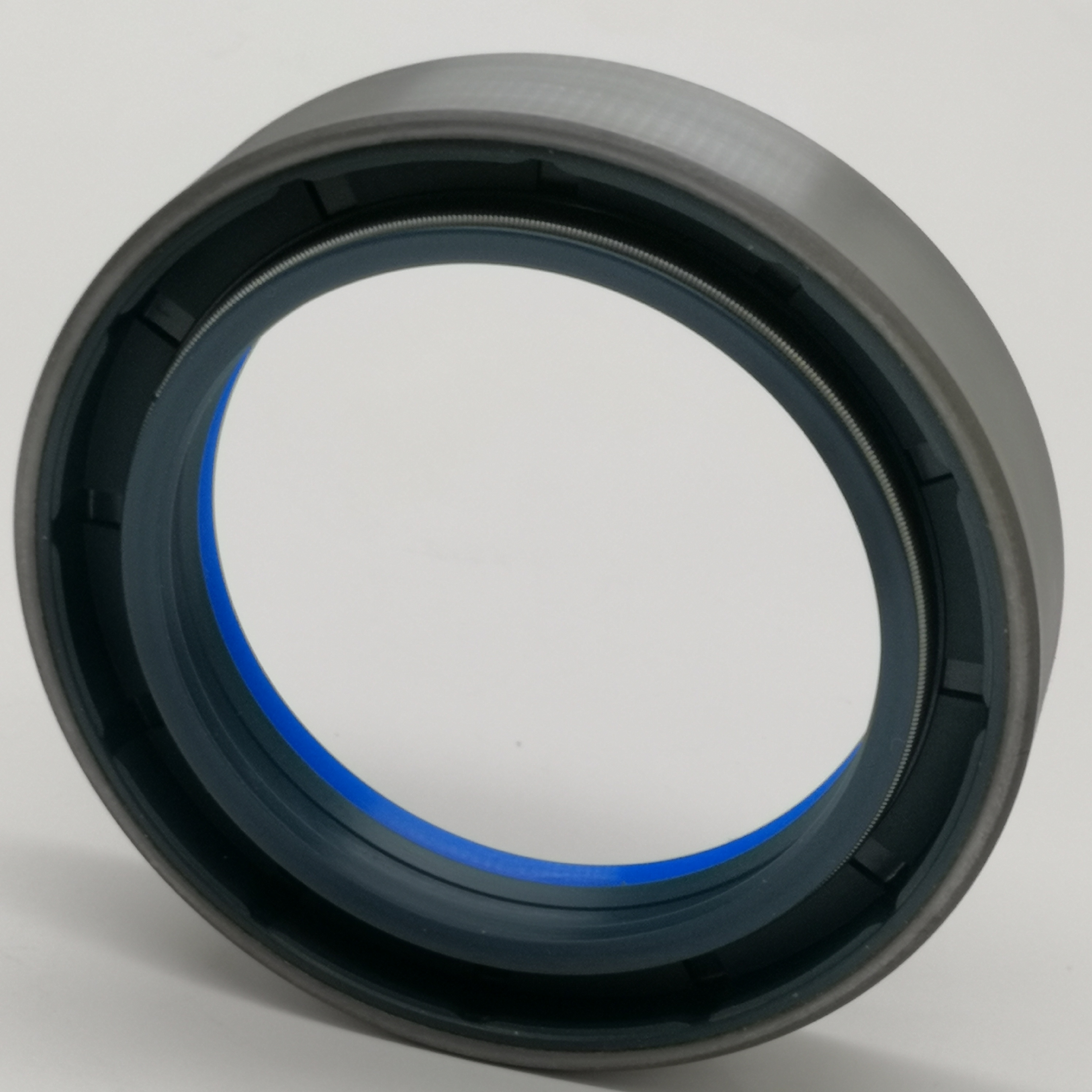

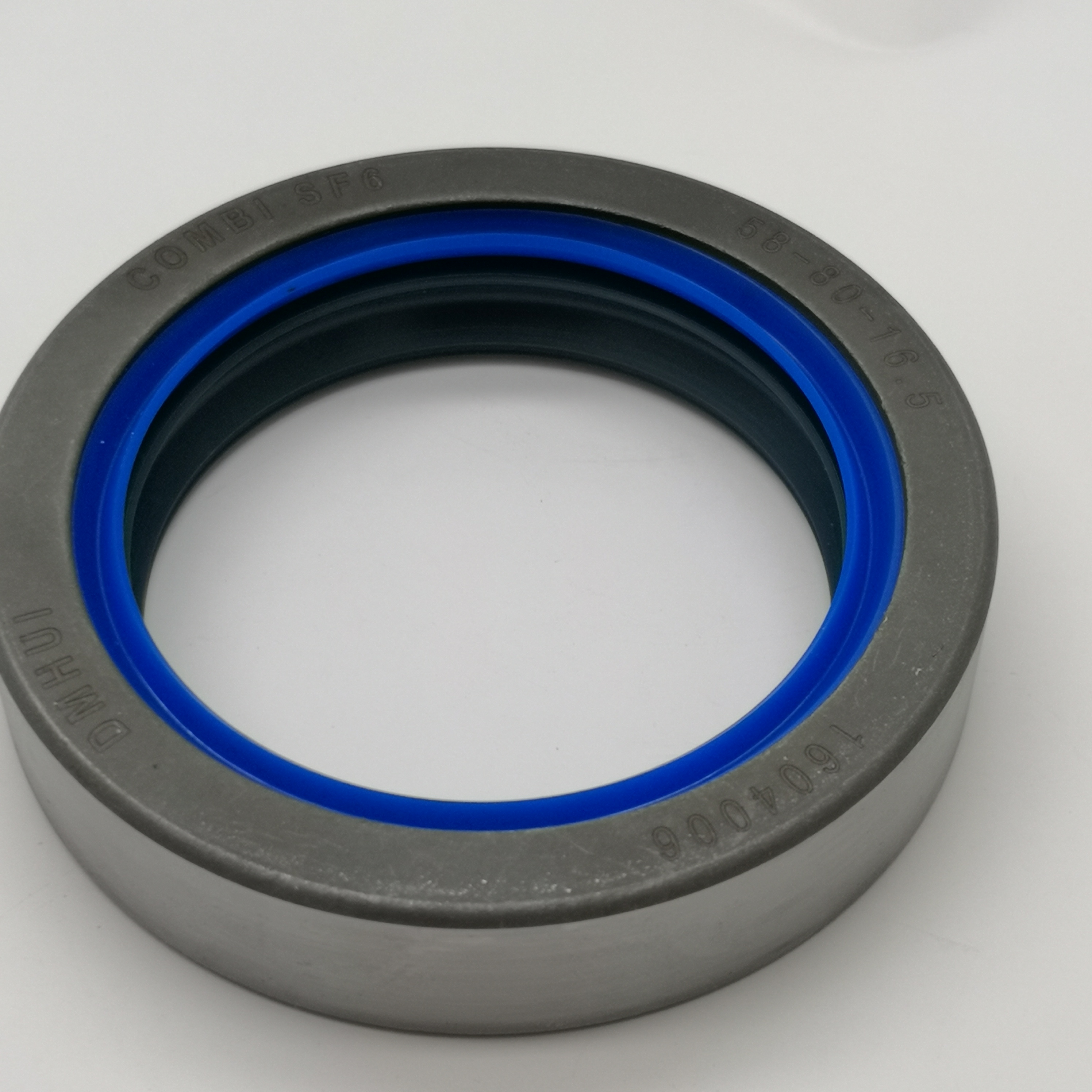

• Product Type: Oil Seal

• Model: COMBI SF6

• Size: 58*80*16.5 mm

• Material: NBR + Metal

• Color: Blue inner lip, grey metal outer shell

• Application: Agricultural Machinery

• Structure: Double lip with spring-loaded sealing

• Function: Prevents oil leakage and contaminant ingress

• Features: High durability, wear resistance, dual protection

• Installation Type: Press-fit with interference fit

• Hardness: 70 Shore A

• Temperature Range: -30°C to +120°C

• Pressure Resistance: Up to 0.05 MPa

• Rotational Speed: Up to 10 m/s

• Friction Type: Low-friction operation

• Durability: Long-lasting in high-load applications

• Surface Finish: Ground metal ring

• Design Standard: ISO/TS 16949

• Manufacturing Process: Precision-molded and machined

• Maintenance: Maintenance-free

• Compatibility: Suitable for axles, gearboxes, powertrains

• Sealing Direction: Bidirectional sealing

• Resistance: Oil, dust, mud, water

• Inner Lip Type: Spring-supported inner sealing lip

• Outer Ring Type: Metal shell

• Contact Type: Radial contact

• Noise Level: Low-noise operation

• Lubrication: Compatible with oil-based systems

• Shape: Circular

• Weight: Approx. 115g

• Elasticity: Moderate

• Torque: Low starting torque

• Thickness: 16.5 mm

• Outer Diameter: 80 mm

• Inner Diameter: 58 mm

• Resilience: Excellent rebound under dynamic motion

• Vibration Resistance: Medium to high

• Corrosion Resistance: Yes

• Packaging: Individual industrial packaging

• Certification: ISO9001

• OEM Support: Yes

• Customization: Acceptable for large orders
