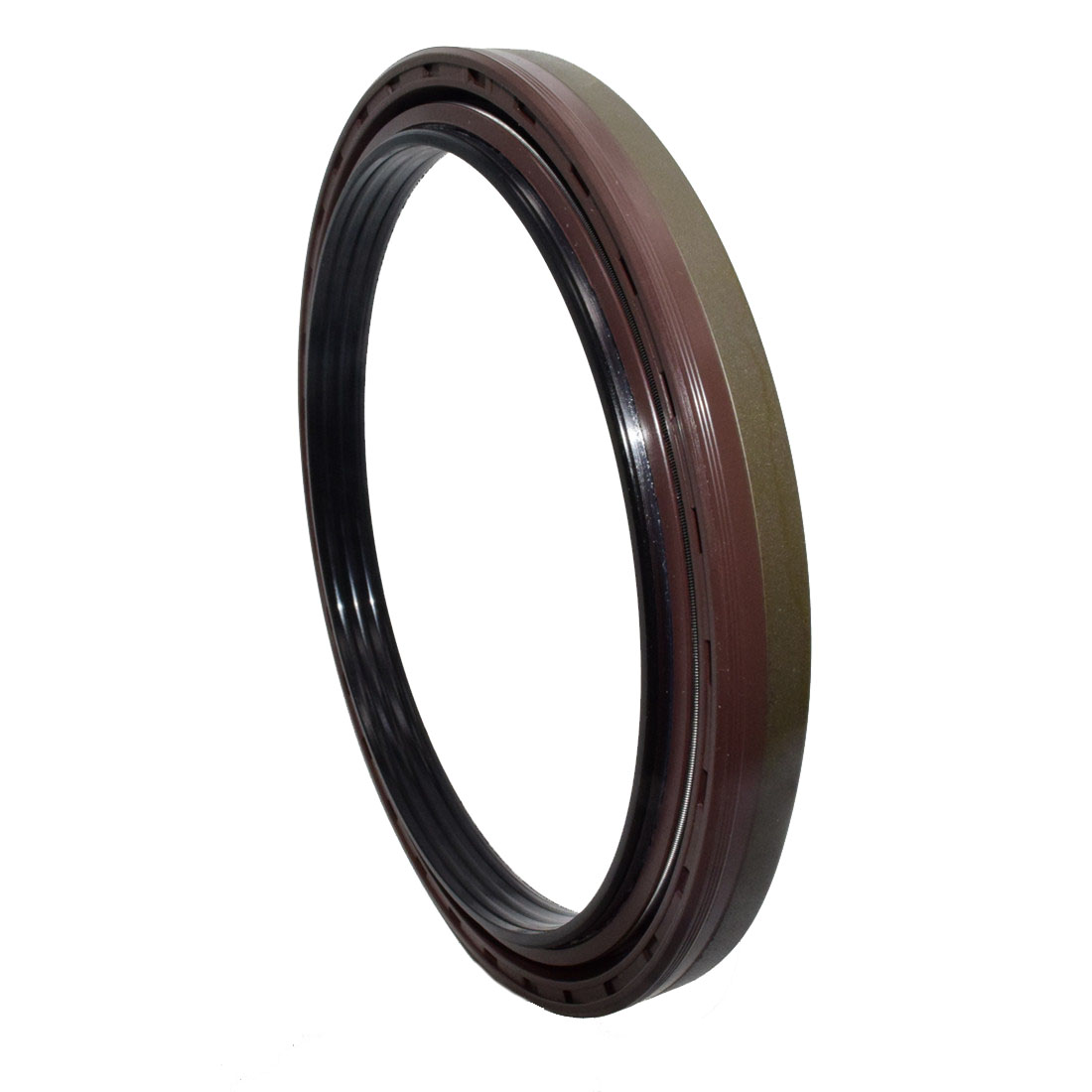

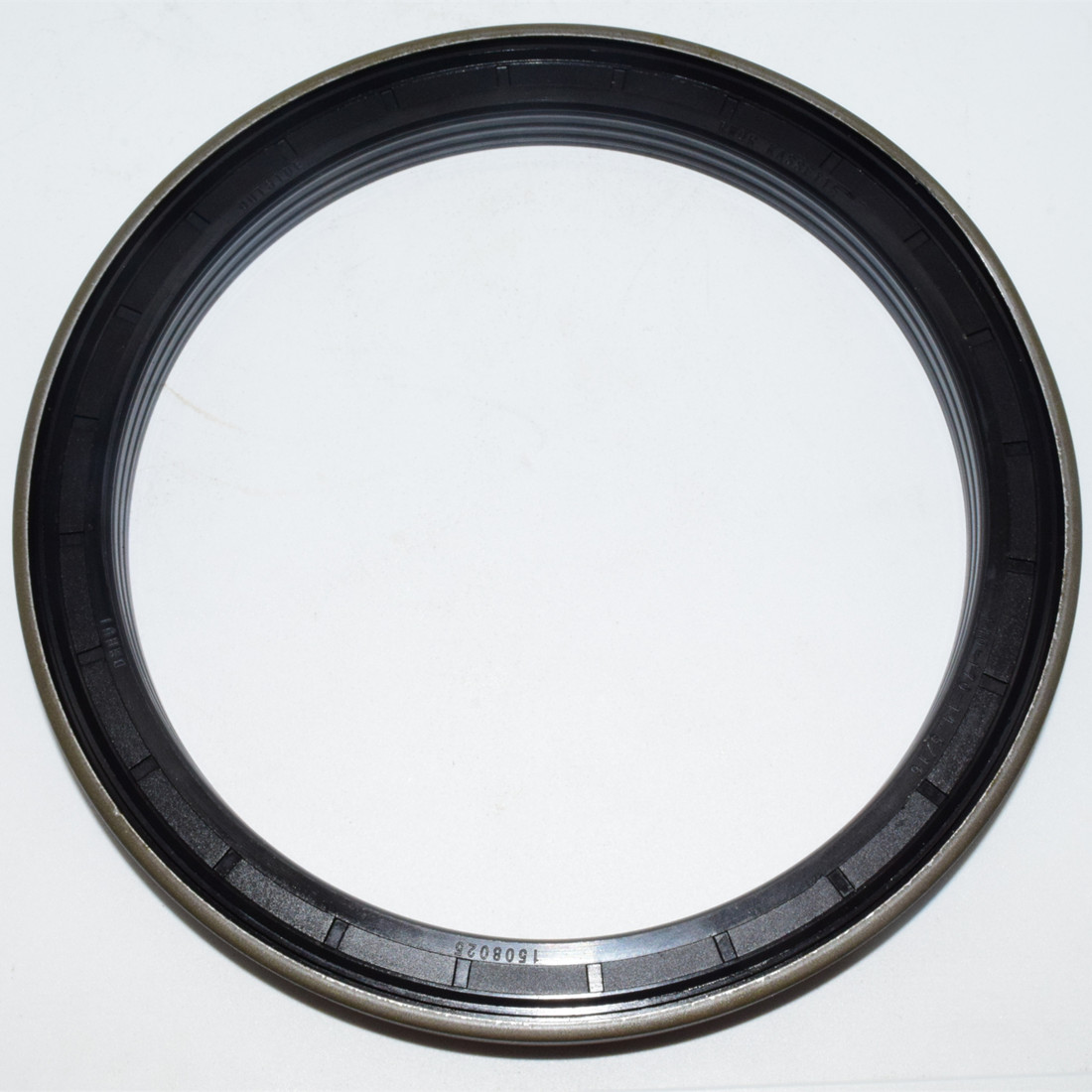

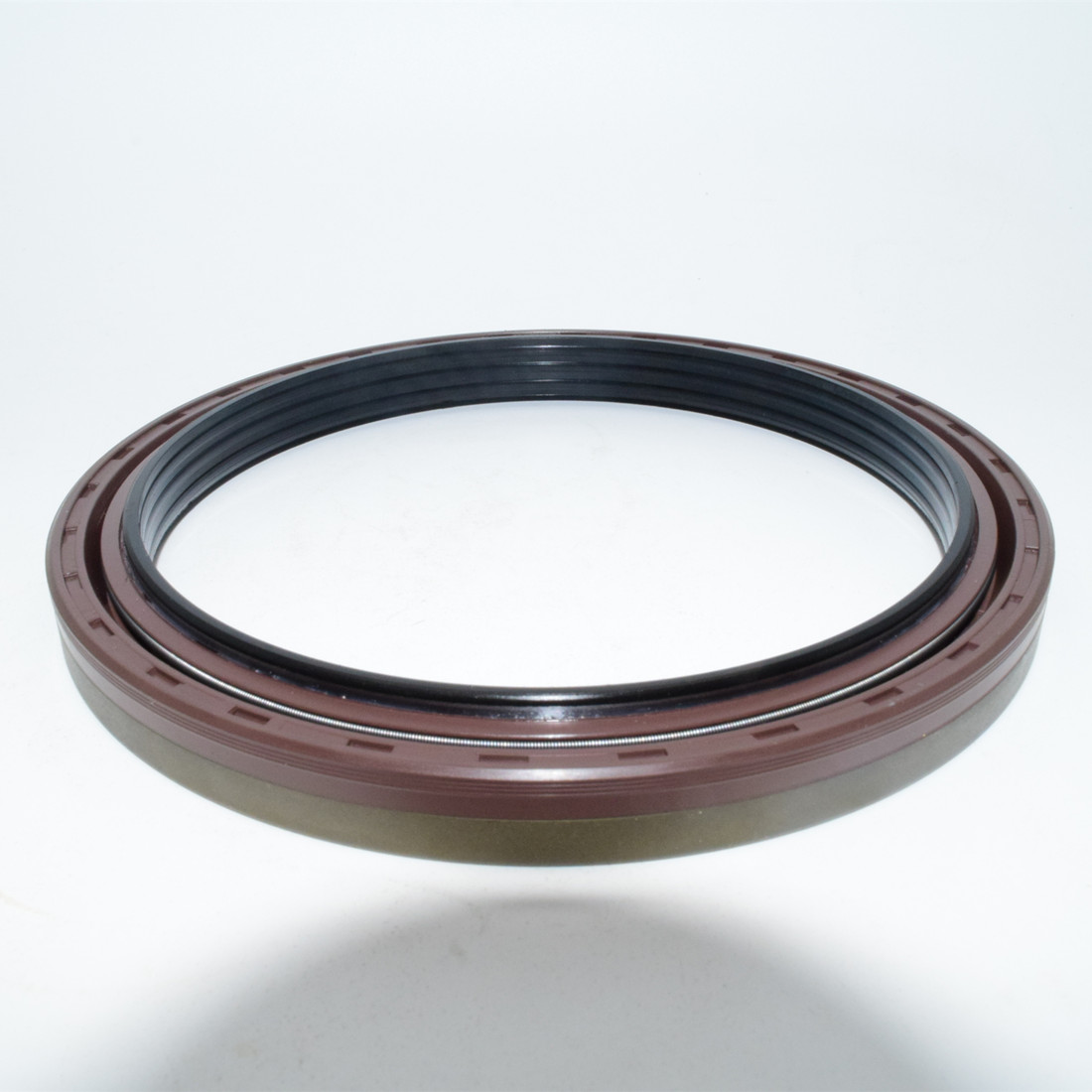

Product Name: Agricultural Machinery Oil Seal
Application: Agricultural and Off-road Equipment
Function: Provides high-efficiency shaft sealing and prevents ingress of contaminants
Material: Premium NBR with Steel Case
Inner Diameter: 140 mm
Outer Diameter: 170 mm
Thickness: 14.5/16 mm
Color: Brown and Olive
Design: Multi-lip Cassette Seal
Style: RWDR KASSETTE
Resistance: Excellent resistance to dust, oil, mud, and grease
Temperature Range: -40°C to +120°C
Hardness: 70-90 Shore A
Pressure Resistance: Up to 0.05 MPa
Structure: Enclosed cassette with multiple sealing lips
Use: Rotary shafts, wheel hubs, axles
Installation: Interference press fit
Seal Type: Cassette Rotary Shaft Seal
Seal Style: Multi-lip sealing system
Vibration Resistance: Very High
Corrosion Resistance: Yes
Dynamic Use: Yes
Static Use: Yes
Dustproof: Enhanced sealing performance
Waterproof: Yes
Ozone Resistance: Yes
Surface Finish: Precision molded rubber and metal
Edge Style: Ribbed Profile
Reinforced: Full metal backing
Compression Set: Minimal
Abrasion Resistance: Excellent
Customizable: Yes
OEM: Supported
Standard: ISO 9001 / TS 16949 Compliant
Quality Control: 100% Tested
Packaging: PE bag + box + export carton
Certification: ISO Certified
Lead Time: 5–10 working days
MOQ: 100 pieces
Origin: China
Usage Scene: Tractors, Axles, Heavy-duty Machinery
