HOME >> Construction machinery seals >> High Pressure Hydraulic Pump Oil Seal 19*35*6 – BAFSL1SF Style, VITON Material

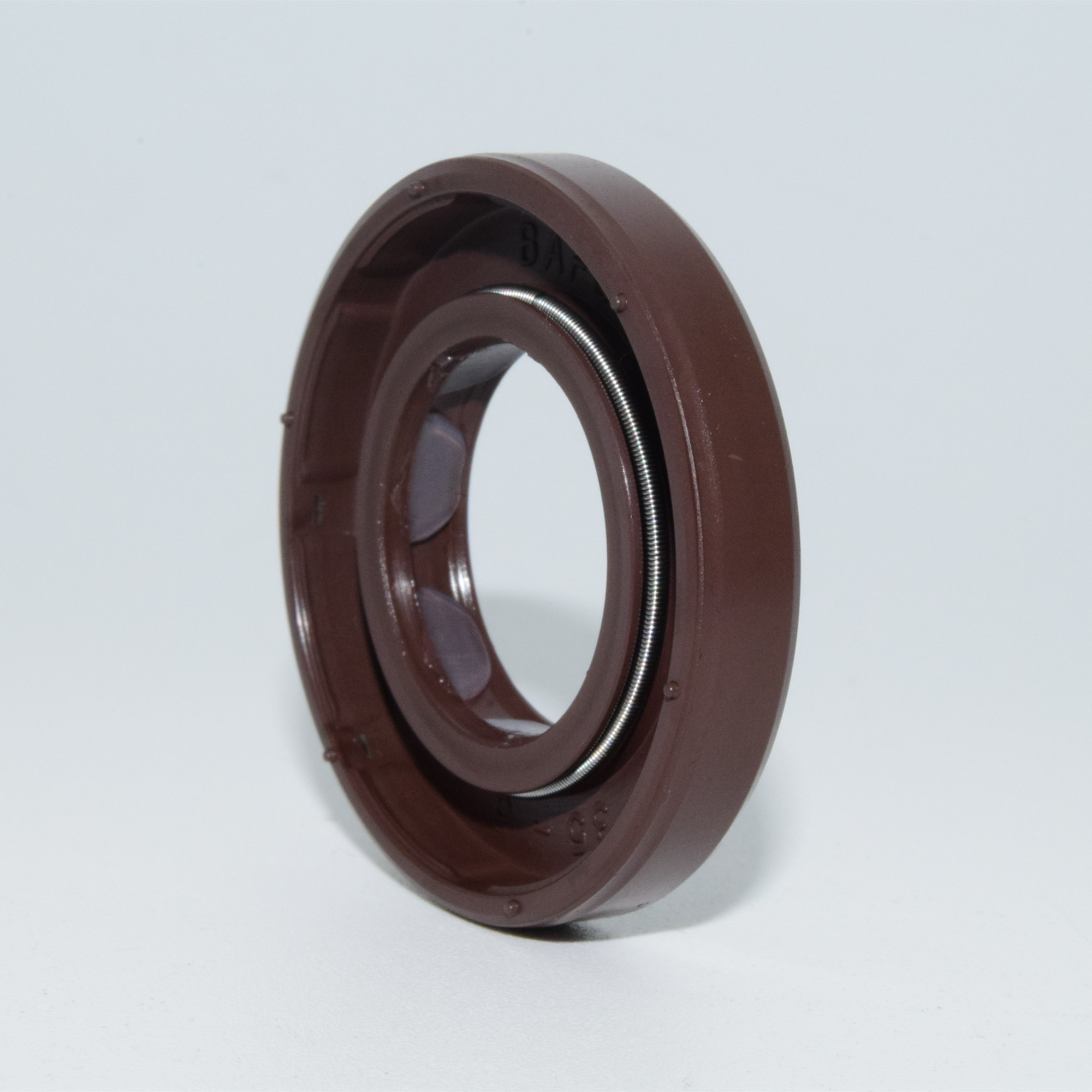

  • High Pressure Hydraulic Pump Oil Seal 19*35*6 – BAFSL1SF Style, VITON Material
    ❤ Add to collection

  • High Pressure Hydraulic Pump Oil Seal 19*35*6 – BAFSL1SF Style, VITON Material

    Engineered for high-pressure environments, this compact oil seal measures 19×35×6mm and adopts the BAFSL1SF configuration. Manufactured from high-performance VITON rubber, it ensures excellent resistance to heat, oil, and chemicals.
    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • (Inventory: 99999)
    • consult
Description
Engineered for high-pressure environments, this compact oil seal measures 19×35×6mm and adopts the BAFSL1SF configuration. Manufactured from high-performance VITON rubber, it ensures excellent resistance to heat, oil, and chemicals.

  • Product Type: High Pressure Hydraulic Oil Seal

  • Application: Hydraulic Pumps

  • Structure: BAFSL1SF

  • Inner Diameter: 19mm

  • Outer Diameter: 35mm

  • Width: 6mm

  • Material: VITON (Fluororubber)

  • Color: Brown

  • Sealing Type: Radial shaft seal

  • Lip Type: Double lip with spring

  • Spring: Stainless steel internal tension spring

  • Operating Temperature: -20°C to +200°C

  • Pressure Resistance: Up to 30 MPa

  • Oil Resistance: Excellent

  • Chemical Resistance: Excellent

  • Abrasion Resistance: High

  • Dynamic Sealing: Yes

  • Static Sealing: Yes

  • Rotational Speed: High-speed capable

  • Installation Direction: One-way

  • Installation Type: Press-fit

  • Outer Shell: Reinforced with metal case

  • Noise Reduction: Yes

  • Dust Resistance: Yes

  • OEM Compatibility: Available

  • Usage: Industrial & construction machinery

  • Standard Compliance: ISO 9001, RoHS

  • Lead-Free: Yes

  • Custom Options: Available

  • Packaging: Individually packed

  • Service Life: Over 10,000 hours

  • Minimum Order: 100 pcs

  • Lubrication Required: Yes (pre-greased optional)

  • Resilience: Excellent elastic recovery

  • Friction: Low for energy efficiency

  • Corrosion Protection: Yes

  • Flexibility: Maintains elasticity at high temps

  • Compatibility: Hydraulic oils, greases

  • Storage: Store in cool, dry place

  • Eco-Friendly: Yes
