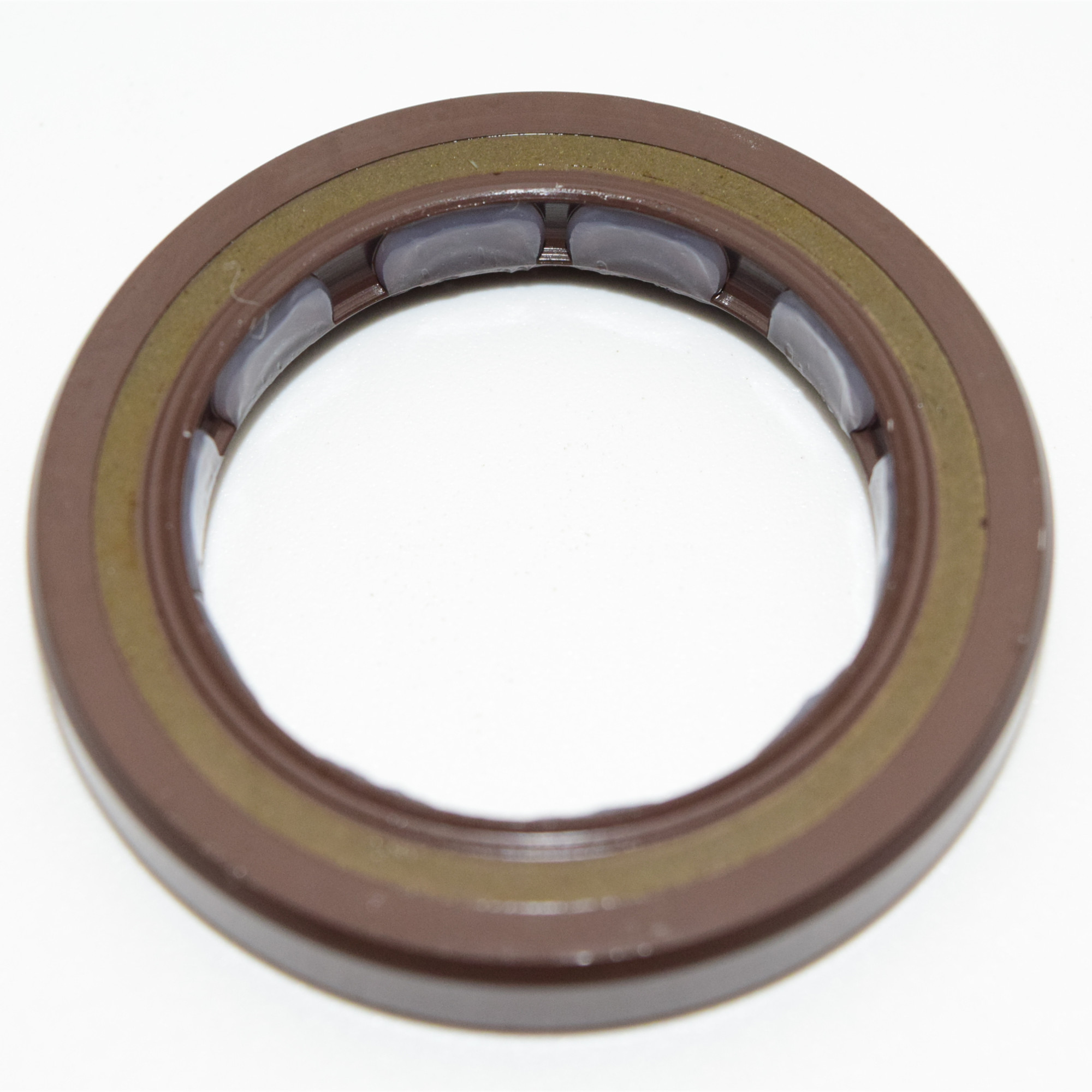

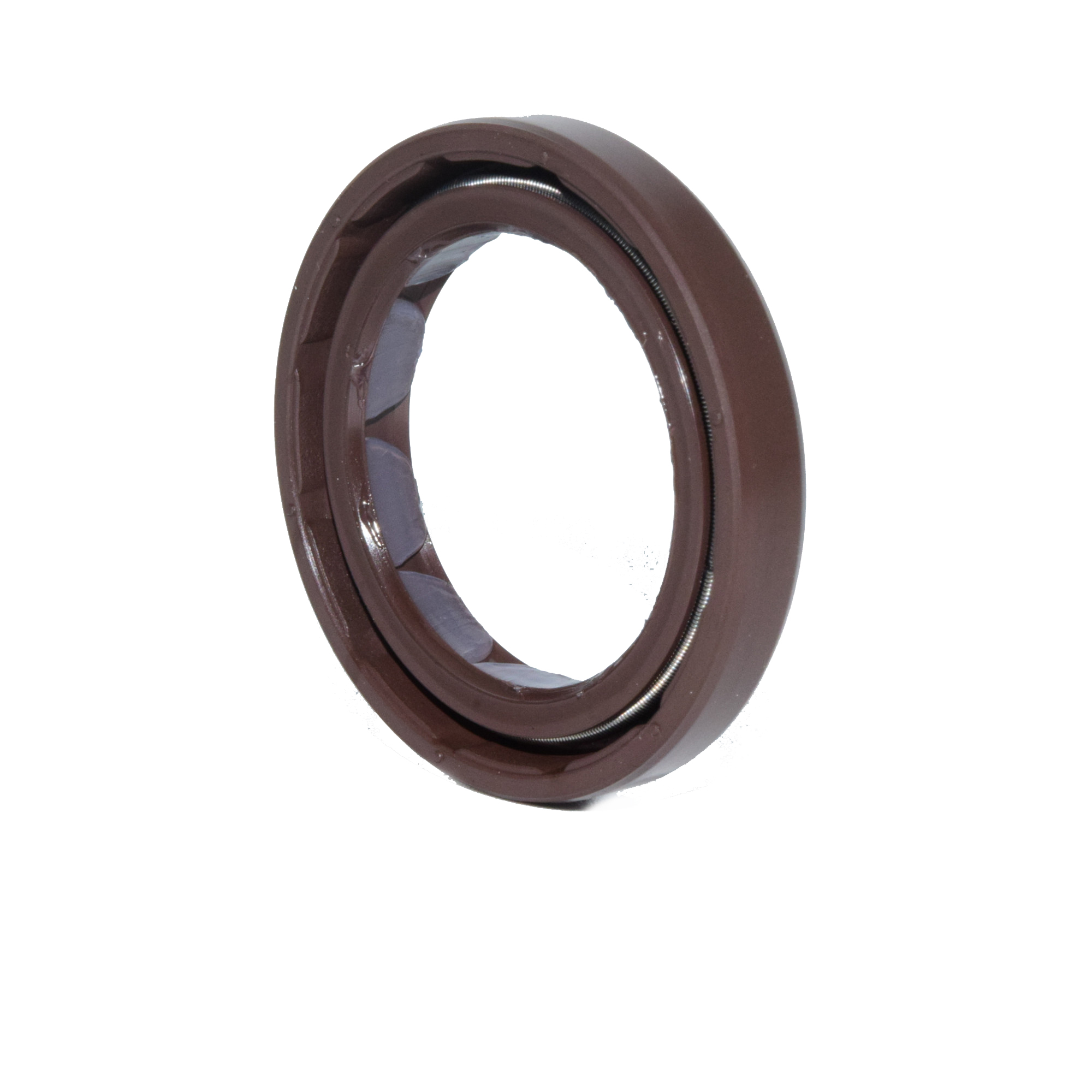

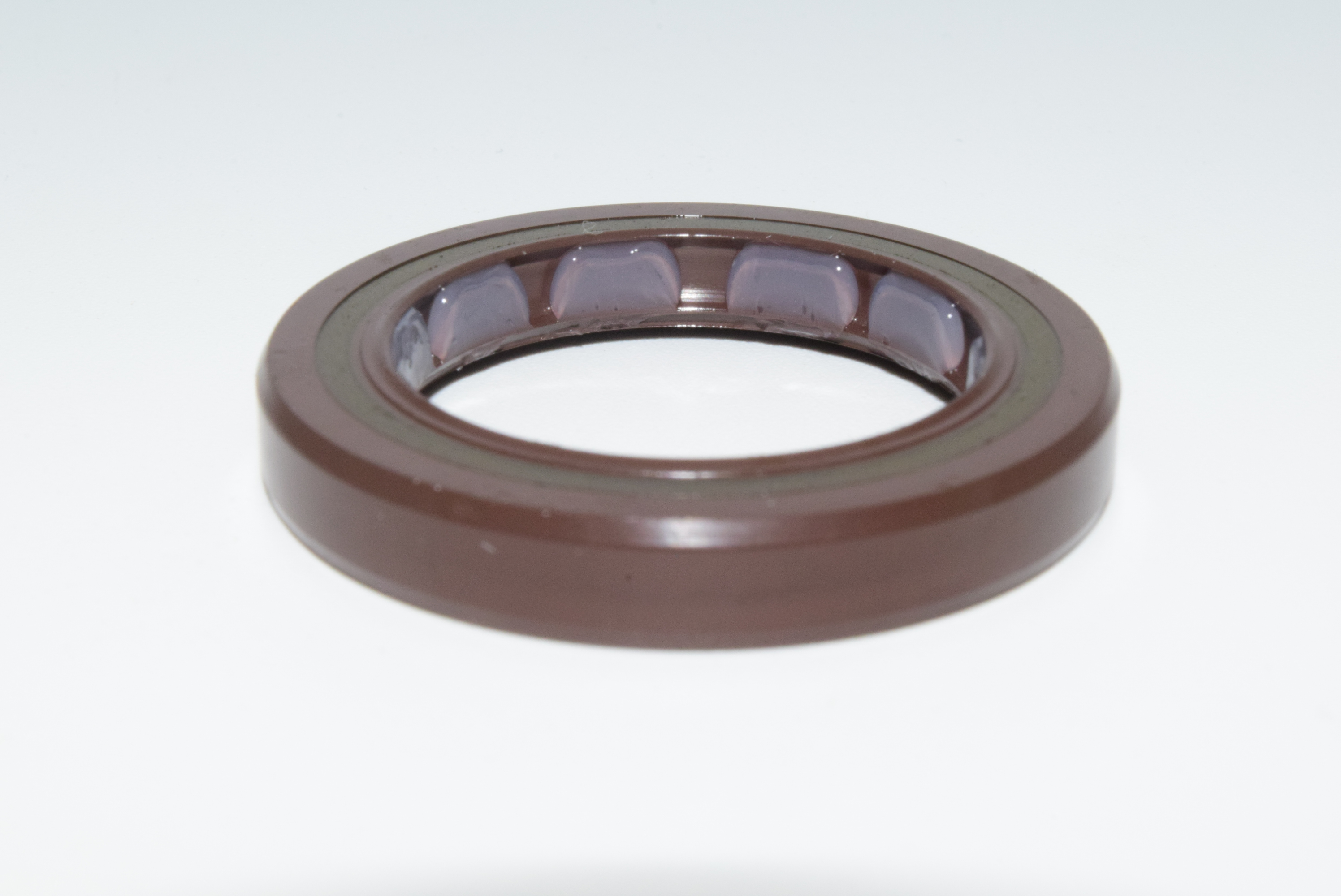

Product Type: Skeleton Rotary Shaft Oil Seal
Size: 28*40*6mm
Style: BAB2SL05
Material: FKM (Fluoroelastomer)
Color: Brown
Structure: Double Lip with Spring
Hardness: 70~90 Shore A
Temperature Resistance: -25°C to +200°C
Pressure Resistance: Up to 0.05 MPa
Rotational Speed: ≤12 m/s
Medium: Hydraulic oil, lubricating oil
Installation Type: Press-fit
Function: Oil sealing and dust prevention
Friction Type: Low-friction
Wear Resistance: Excellent
Corrosion Resistance: High
Ozone Resistance: Yes
Chemical Resistance: Excellent
Elasticity: Good resilience
Application: Hydraulic pumps and hydraulic motors
Applicable Pump Models: A2FO10, A2FO12, A2FO16, A2FE10, A2FE12, A2FE16, A2FM10, A2FM12, A2FM16, A10V45, 42L28
Industry Usage: Hydraulic systems, machinery
OEM Service: Available
Sample Availability: Yes
Sealing Direction: Single direction
Dynamic Sealing: Supported
Static Sealing: Supported
Package: Plastic bag + Carton
MOQ: 100 pieces
Lead Time: 7–15 days
Certification: ISO9001
Origin: China
Weight: Approx. 10g
Inner Diameter: 28mm
Outer Diameter: 40mm
Thickness: 6mm
Dust Lip: Yes
Reinforcement: Metal ring inside
Custom Design: Accepted
