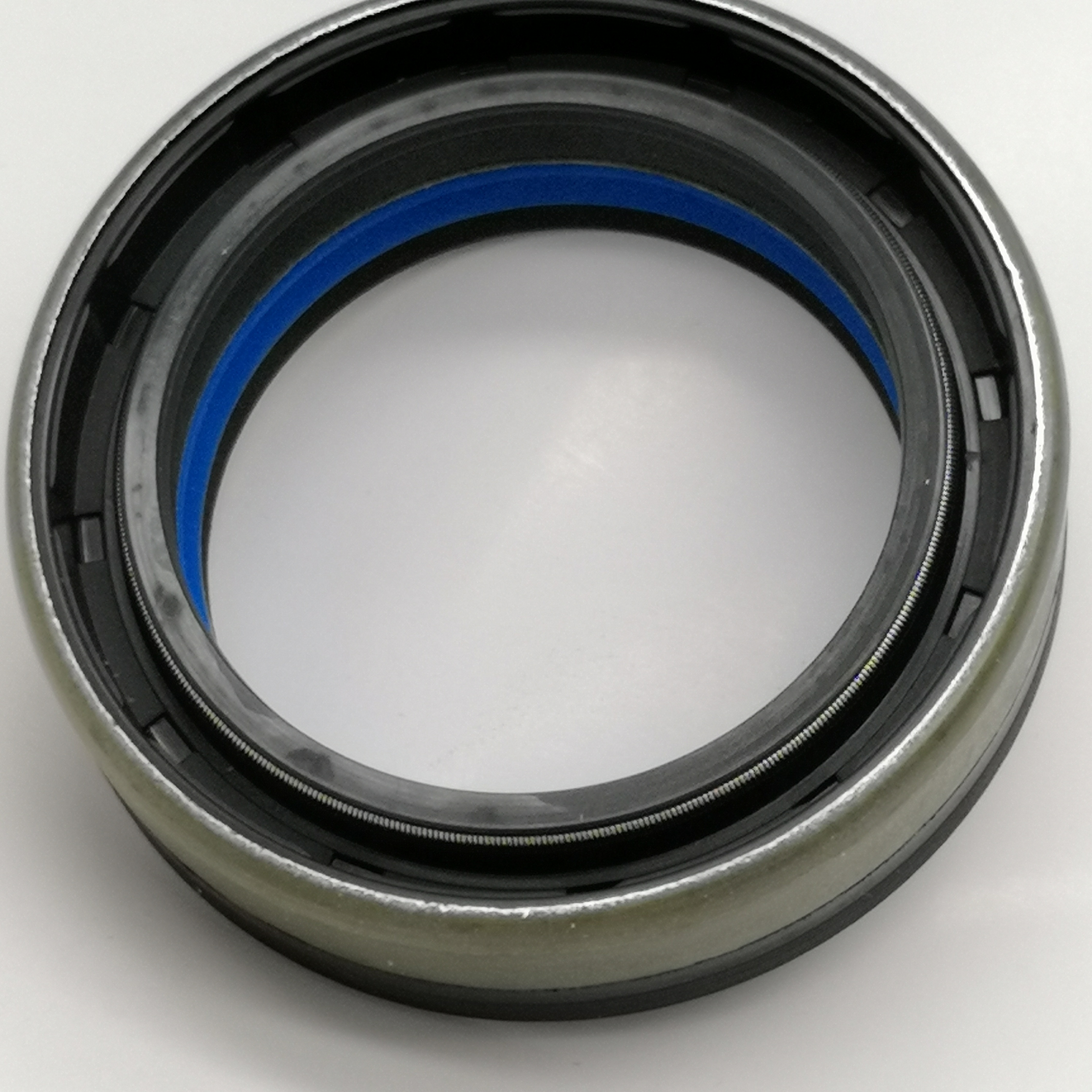

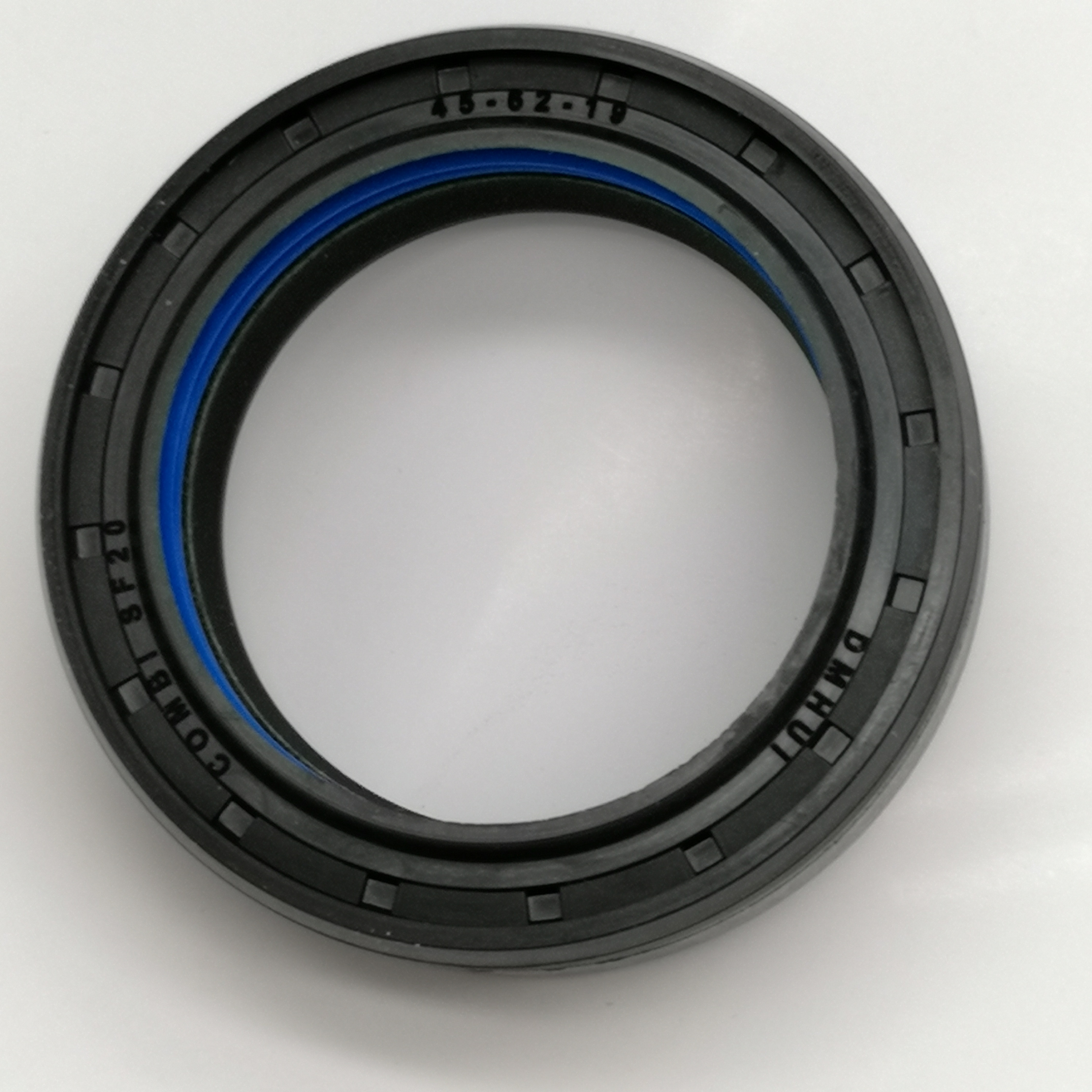

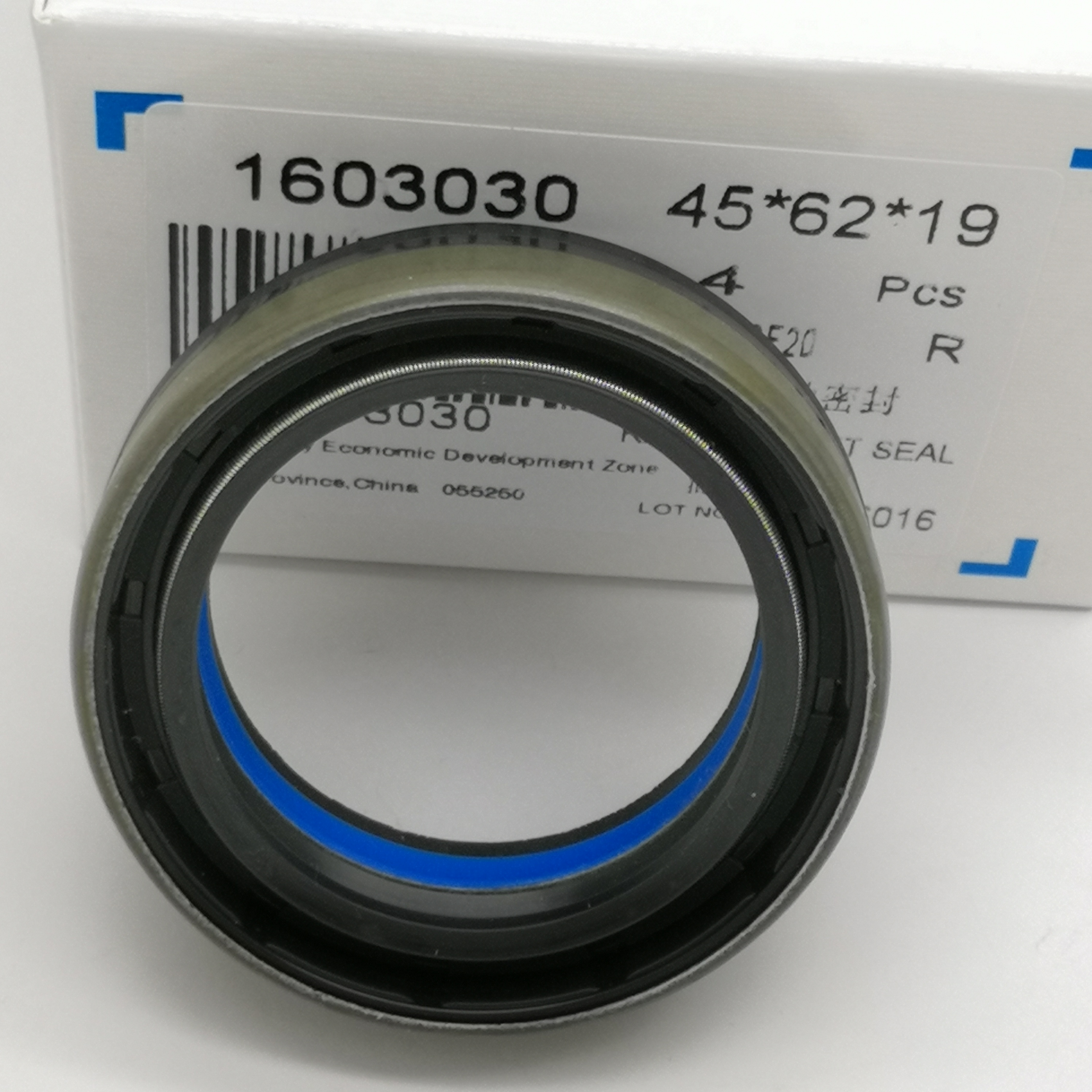

Product Type: Oil Seal

Model: COMBI SF20

Outer Diameter: 62mm

Inner Diameter: 45mm

Width: 19mm

Material: NBR + Reinforced Steel + PTFE Composite

Structure: Dual-lip seal with spring tension and outer shield

Color: Black with blue sealing ring

Application: Agricultural machinery

Sealing Direction: Rotary motion

Seal Type: Radial shaft seal

Surface Treatment: Zinc-plated outer casing

Pressure Resistance: Up to 0.1 MPa

Temperature Resistance: -30°C to +130°C

Speed Rating: Up to 14 m/s

Hardness: 72±5 Shore A

Dust Lip: Yes (double lip with spring)

Friction Type: Low-friction polymer contact

Static Seal: Yes

Dynamic Seal: Yes

Axial Load Resistance: Low

Radial Load Resistance: High

Installation Type: Press-fit

Wear Resistance: Very high

Corrosion Resistance: Excellent

Lubrication Compatibility: Oil and synthetic lubricants

Chemical Resistance: Strong against hydrocarbons

Vibration Resistance: High

Elasticity: Maintains structural integrity

Noise Level: Ultra-low

Life Expectancy: Extended operational life

OEM Compatibility: Yes

Customizable: Available

Certifications: ISO 9001 / IATF 16949

Packaging: Industrial-grade protective packaging

Storage Conditions: Store in dry, low-UV environment

Reusability: No

Recyclable: Partial (metal components)

Primary Use: Agricultural powertrain sealing

Secondary Use: Dust exclusion and fluid retention

Shape: Circular
