Product Details

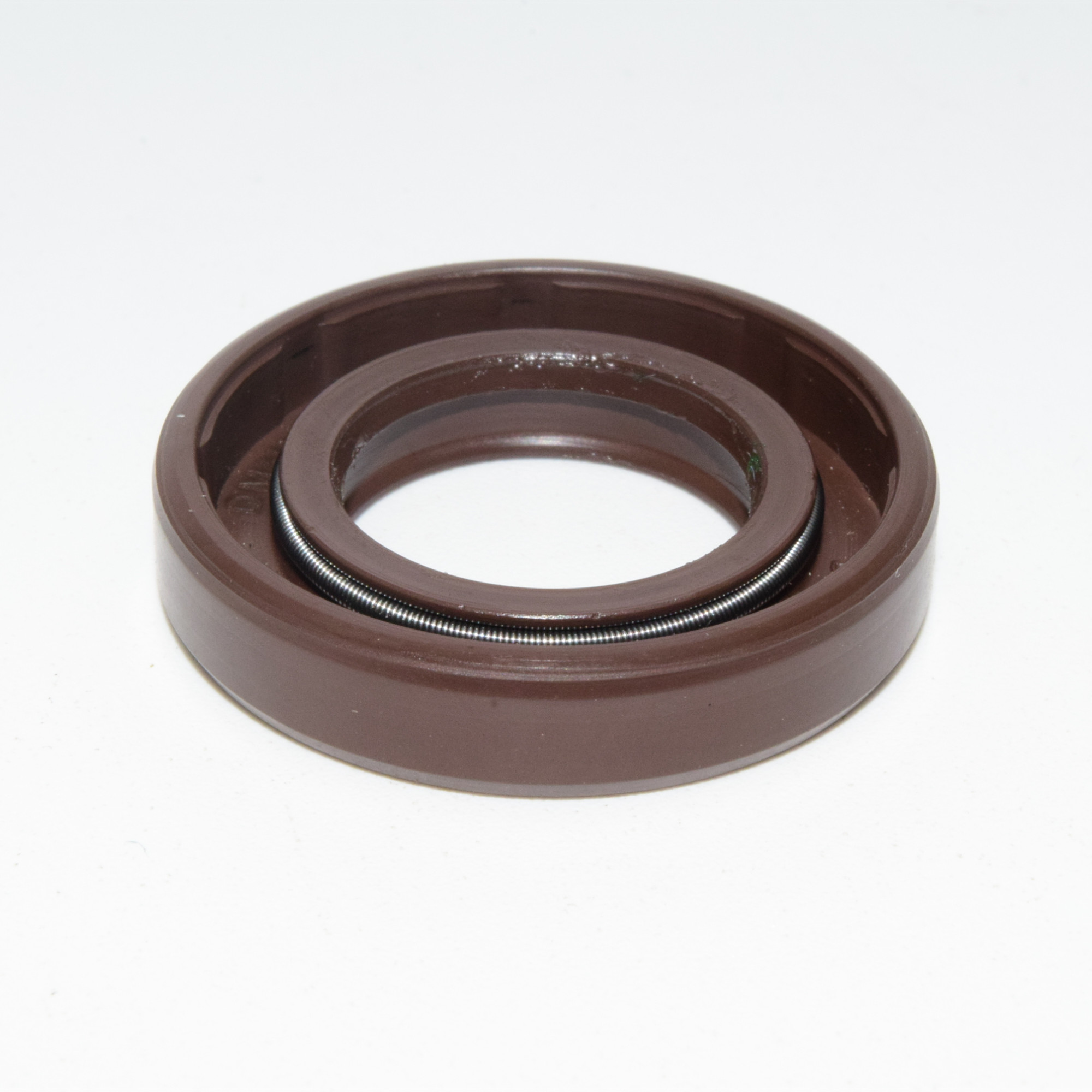

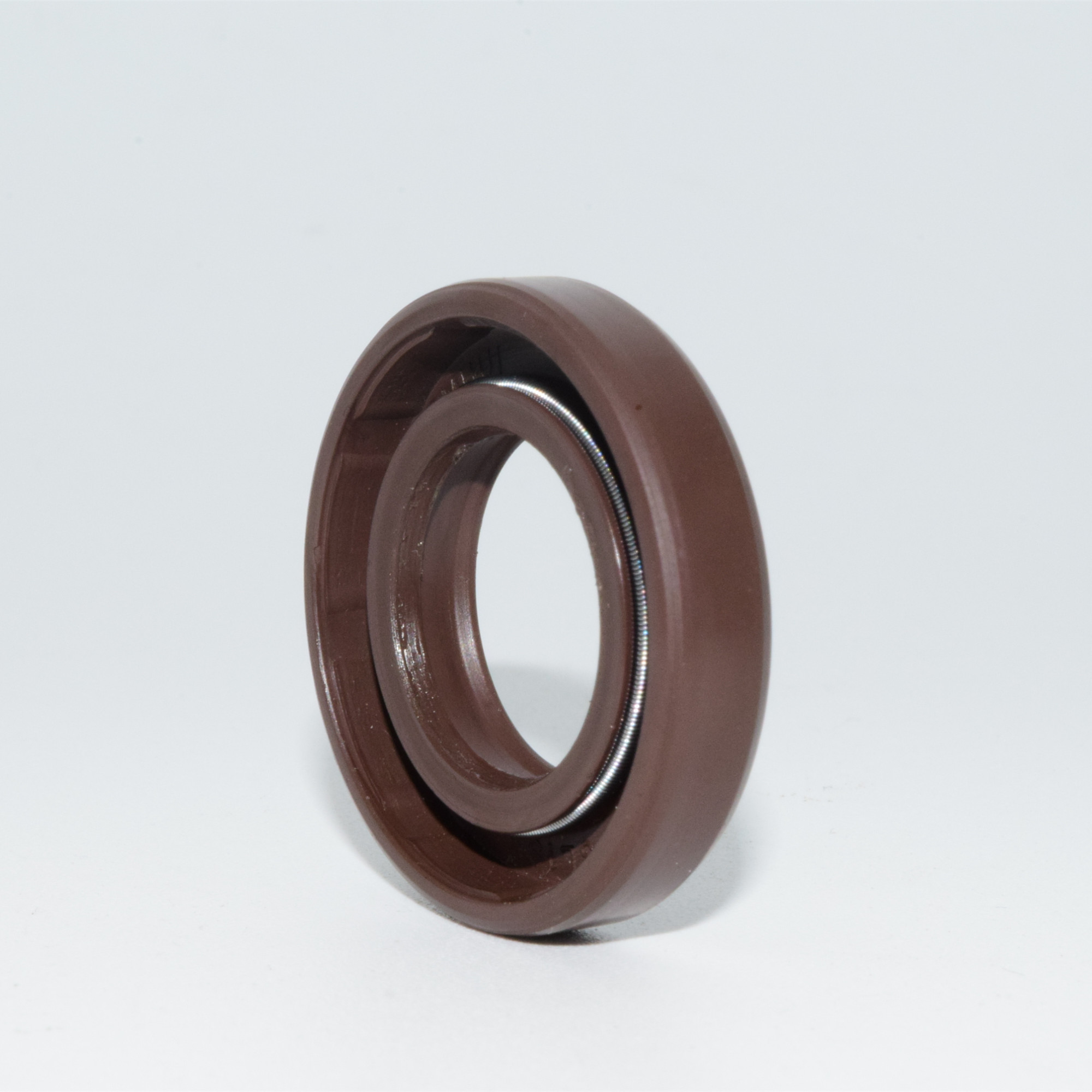

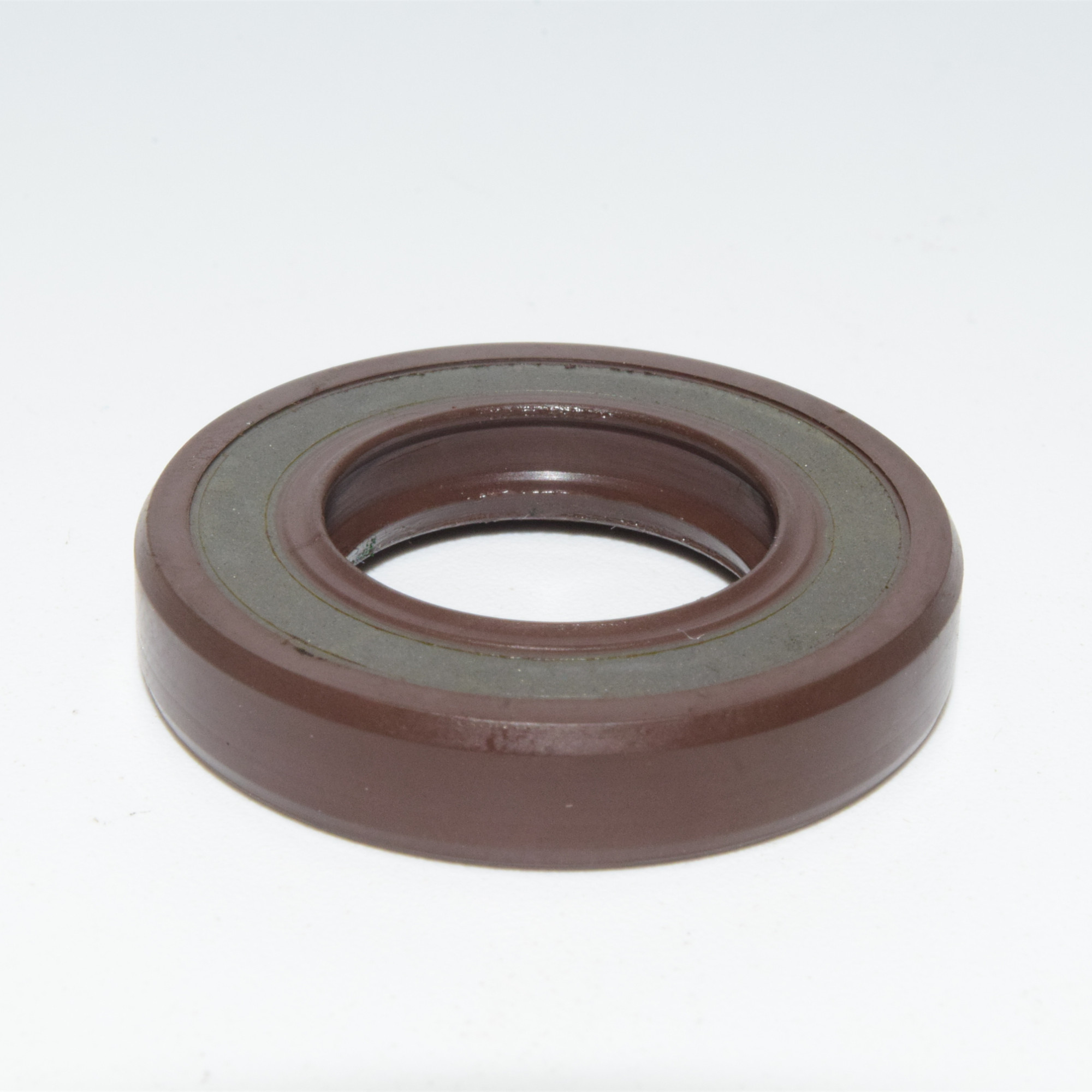

• Product Type: Construction Machinery Oil Seal

• Seal Type: BAFSL1SF

• Material: VITON (Fluorocarbon Rubber)

• Color: Dark Brown

• Size: 17×30×6 mm

• Seal Structure: Spring-loaded Lip Seal

• Temperature Resistance: -20°C to +200°C

• Chemical Resistance: Excellent

• Oil Resistance: Outstanding

• Friction Level: Low

• Wear Resistance: Excellent

• Rotational Speed Limit: ≤10 m/s

• Pressure Tolerance: ≤0.05 MPa

• Durometer Hardness: 75-90 Shore A

• Media Compatibility: Engine oil, hydraulic oil, fuels, coolants

• Elasticity: High

• Spring Type: Stainless steel coil spring

• Axial Sealing Performance: Strong

• Dust Protection: Integrated

• Static Seal Performance: High

• Dynamic Seal Stability: Consistent

• Installation Method: Press fit

• Application: Gearbox, engine shaft, transmission, hydraulic systems

• Industry Use: Construction, industrial, marine, automotive

• Shaft Fit Tolerance: ±0.05 mm

• Housing Bore Tolerance: ±0.1 mm

• Corrosion Resistance: High (with stainless spring)

• Anti-aging Properties: Superior

• Ozone Resistance: Excellent

• Flame Resistance: Moderate

• Vibration Absorption: Good

• Service Life: Long

• Maintenance Requirement: Low

• Installation Difficulty: Easy

• Noise Performance: Quiet operation

• Reusability: No

• Storage Temperature: Room temperature, dry conditions

• Surface Finish: Smooth outer edge

• Packaging: Individual plastic sealed bag

• Country of Origin: China

• Customizable: Yes
