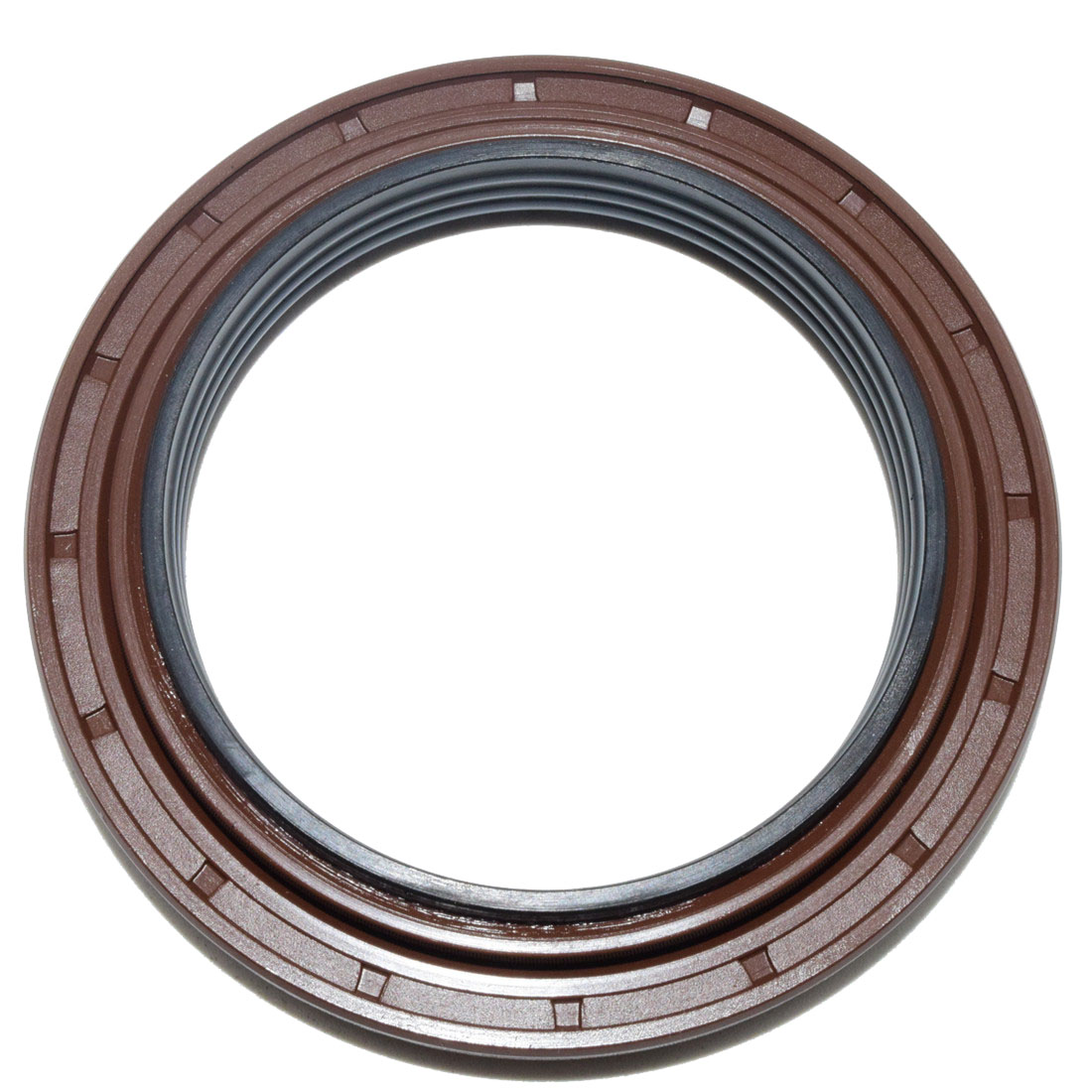

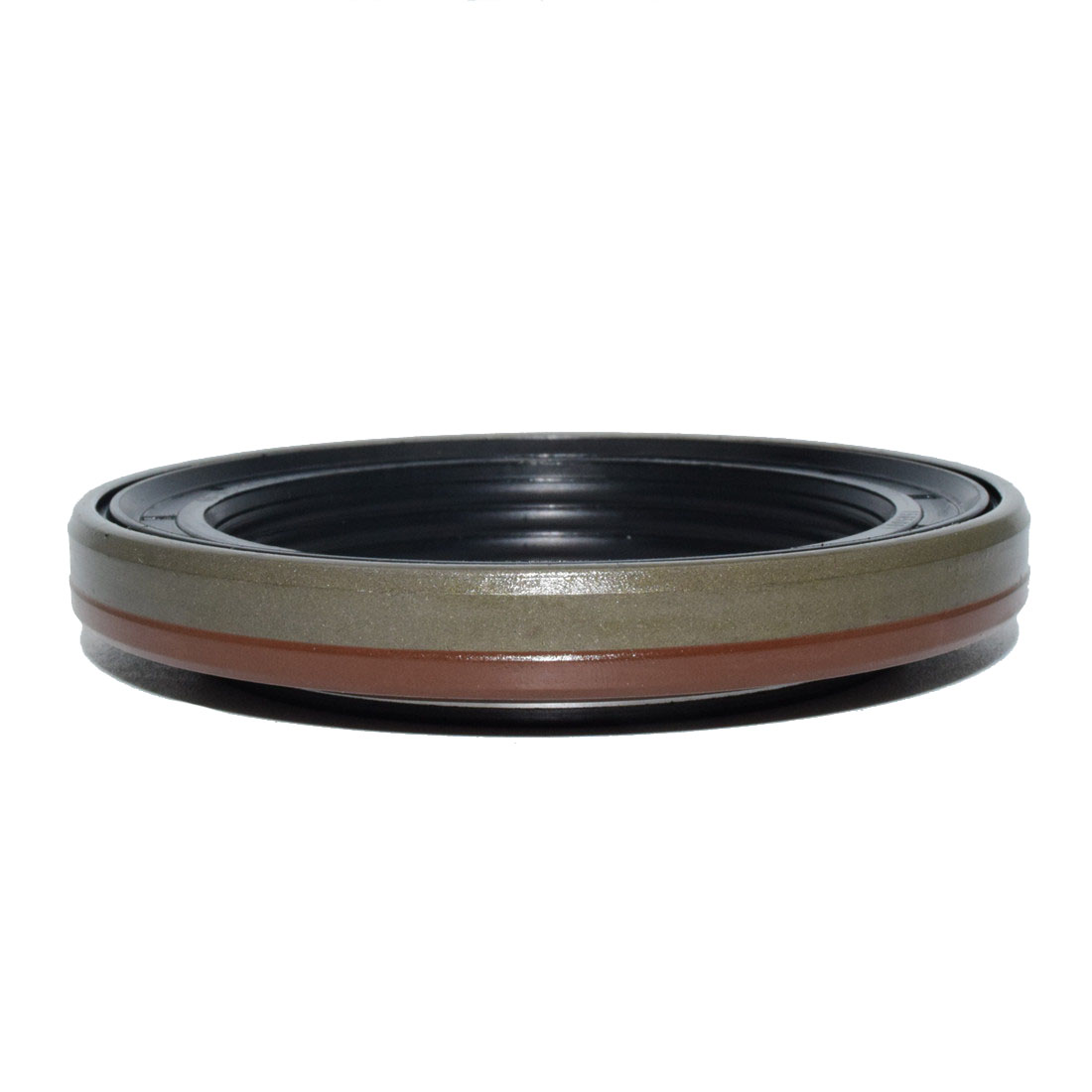

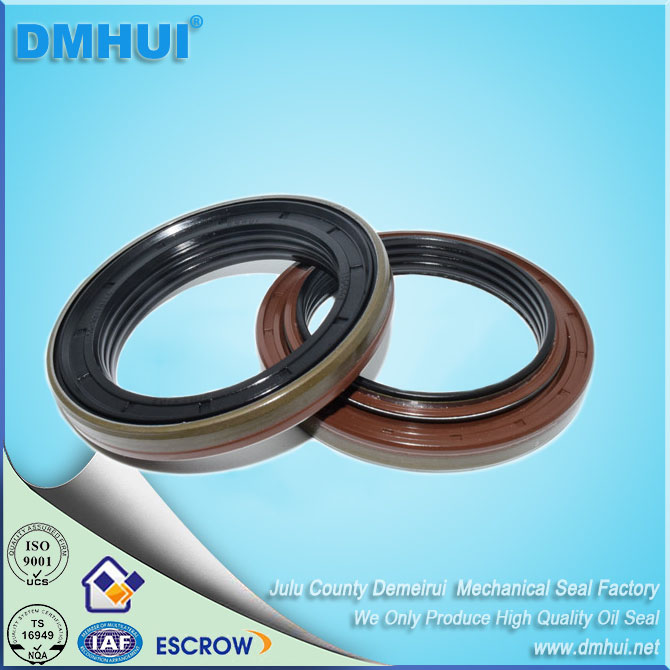

Product Name: Hydraulic Cassette Oil Seal for Construction Machinery
Material: NBR/FKM rubber with steel core insert
Inner Diameter: 127 mm
Outer Diameter: 160 mm
Thickness: 15.5–17 mm
Application: Hydraulic systems in excavators, loaders, construction vehicles
Sealing Type: Multi-lip cassette configuration
Sealing Direction: Bi-directional
Resistance: Oil, grease, dirt, mud, water
Temperature Range: -40°C to +200°C
Reinforcement: Metal backing ring for structural strength
OEM Compatibility: Compatible with OEM hydraulic assemblies
Durability: Extended working life in tough conditions
Noise Performance: Low-noise sealing
Installation: Press-fit into housing
Hardness: 70–90 Shore A
Elasticity: High elasticity and resilience
UV/Aging Resistance: Yes
Corrosion Resistance: Yes
Compression Set: Low
Friction: Low-friction sealing surface
Shape: Circular
Lubrication: Oil and grease compatible
Brand: DMHUI
Model: 127*160*15.5-17
Certifications: ISO 9001 / IATF 16949 / RoHS
MOQ: 50 pcs
Packing: Individual polybag + export carton
Lead Time: 10–20 business days
OEM/ODM: Available
Storage Life: Up to 5 years
