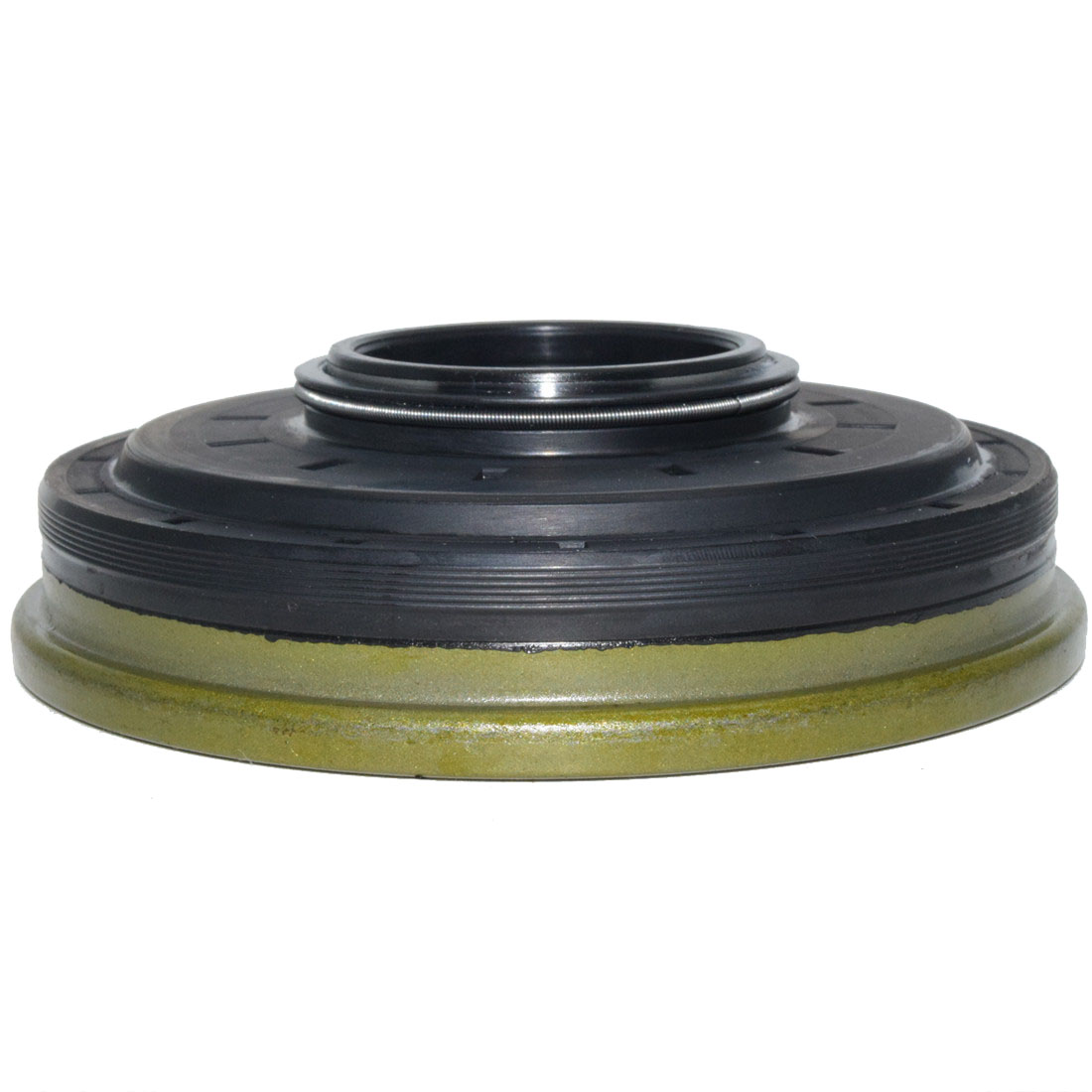

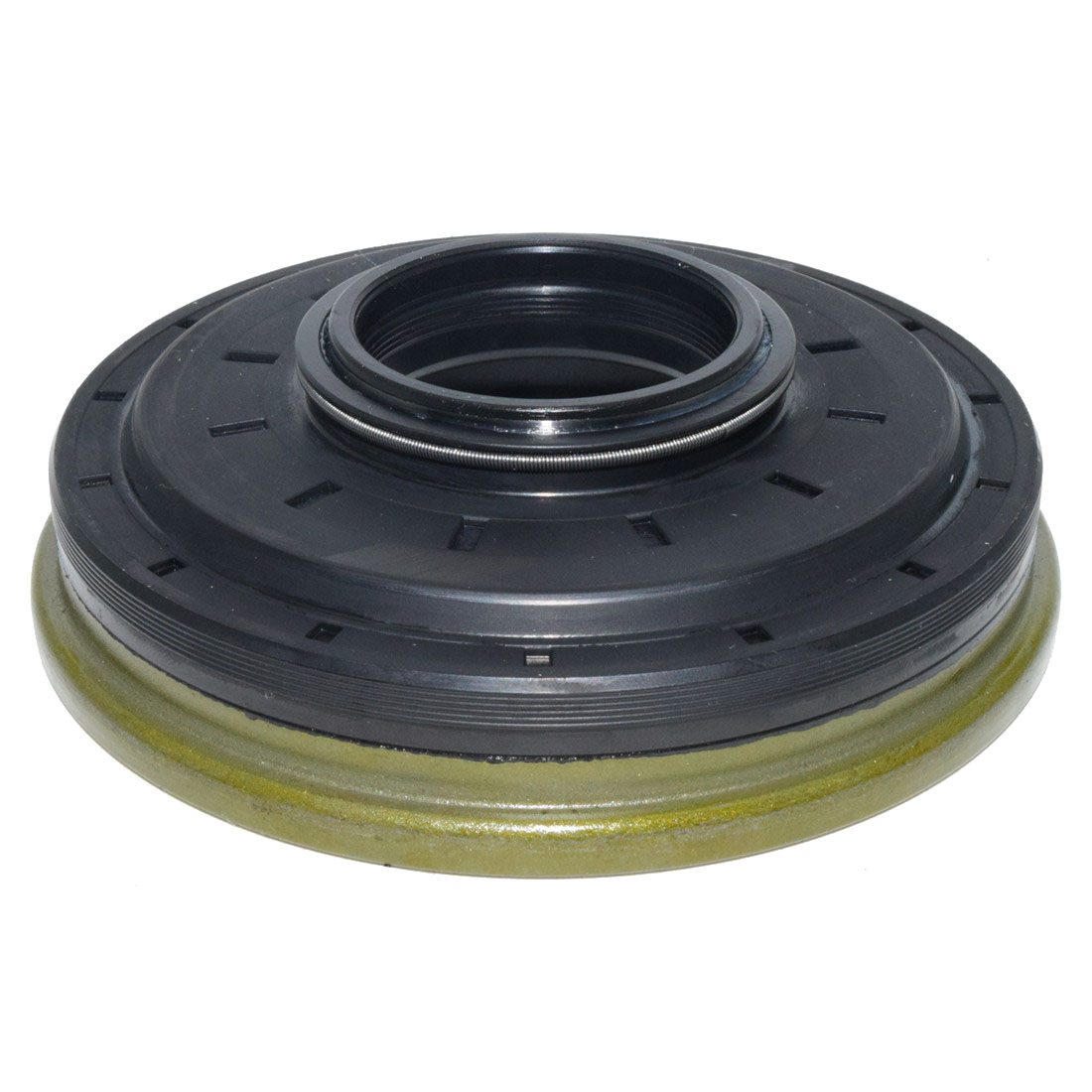

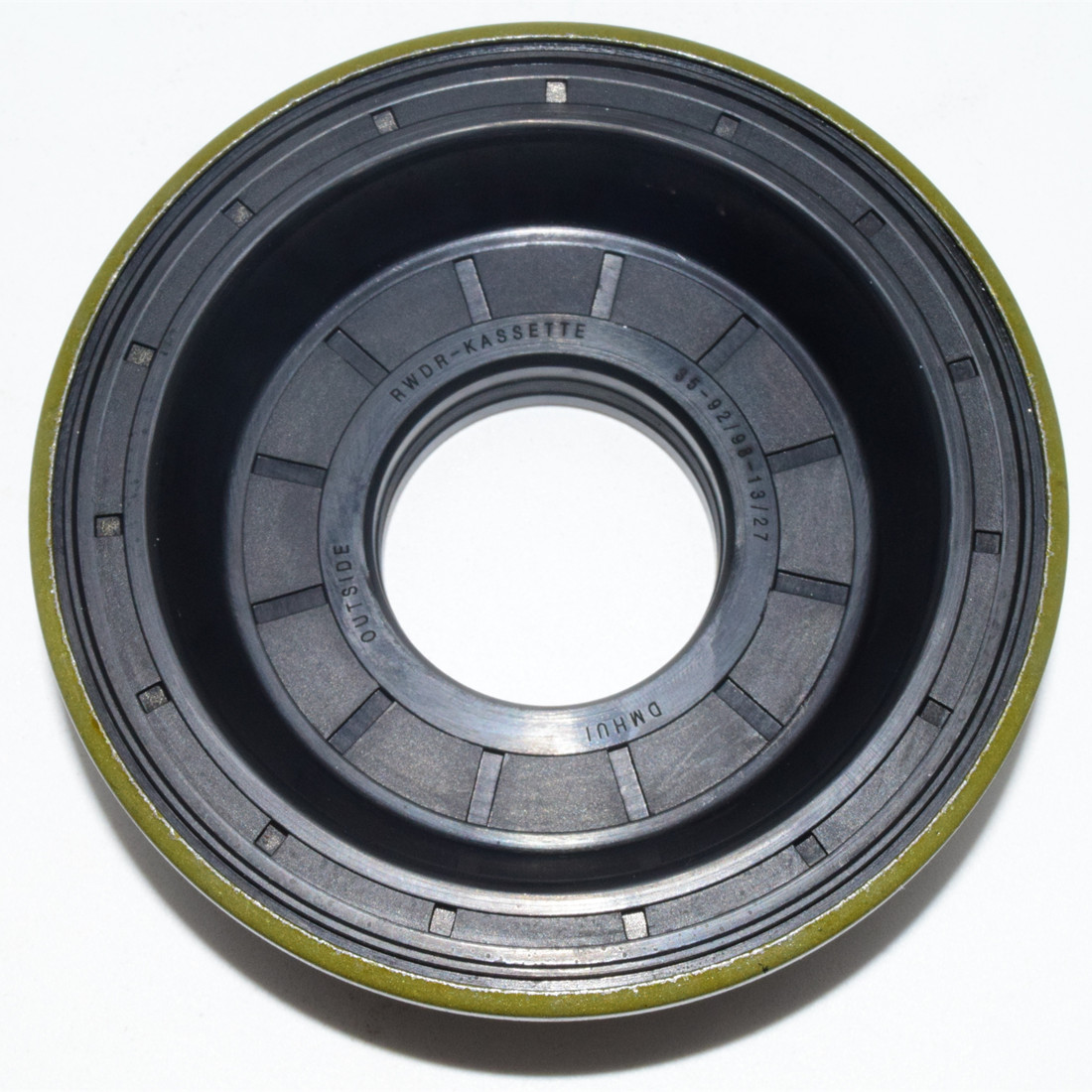

Product Type: Front Axle Oil Seal
Model: RWDR KASSETTE
Part Number: 12014654B
Outer Diameter: 98 mm
Installation Outer Diameter: 92 mm
Inner Diameter: 35 mm
Total Thickness: 27 mm
Seal Lip Width: 13 mm
Structure: Cassette Type Seal
Main Material: FKM (Viton) + Metal Housing
Color: Black + Metallic
Temperature Resistance: -30°C to +200°C
Pressure Resistance: Up to 0.05 MPa
Dust Protection: Multi-lip design for superior dust sealing
Lubrication: Self-lubricating or grease
Rotation Direction: Bidirectional (CW/CCW)
Installation: Press-fit
Service Life: Up to 5000+ hours
Applications: Tractors, Combine Harvesters, Construction Equipment, Industrial Machines
Compatible Brands: Case IH, John Deere, New Holland, CLAAS, etc.
Corrosion Resistance: Excellent oil, mud, and water resistance
Dynamic Sealing: Excellent dynamic sealing performance
Static Sealing: Reliable sealing when stationary
Application Position: Front axle, hub, gearbox output shaft
Certification: ISO/TS 16949
Interchange Part No.: 12014654B or OE reference
Packaging: Individually packed
Storage Conditions: Cool, dry, and shaded
Country of Origin: Made in China
Wear Resistance: High
Seal Lip Type: Primary + Secondary Lip
Spring Design: Stainless Steel Coil Spring
Installation Tips: Lubricate and avoid scratching the seal lips
After-Sales Service: Return and exchange supported
Stock Status: Regular stock
Minimum Order Quantity: 10 pieces
Shaft Speed Suitability: ≤4000 rpm
Usage Environment: Farmland, mining sites, construction areas
Media Resistance: Lubricants, hydraulic oils, water, dust
Market Position: Cost-effective replacement for OEM parts
