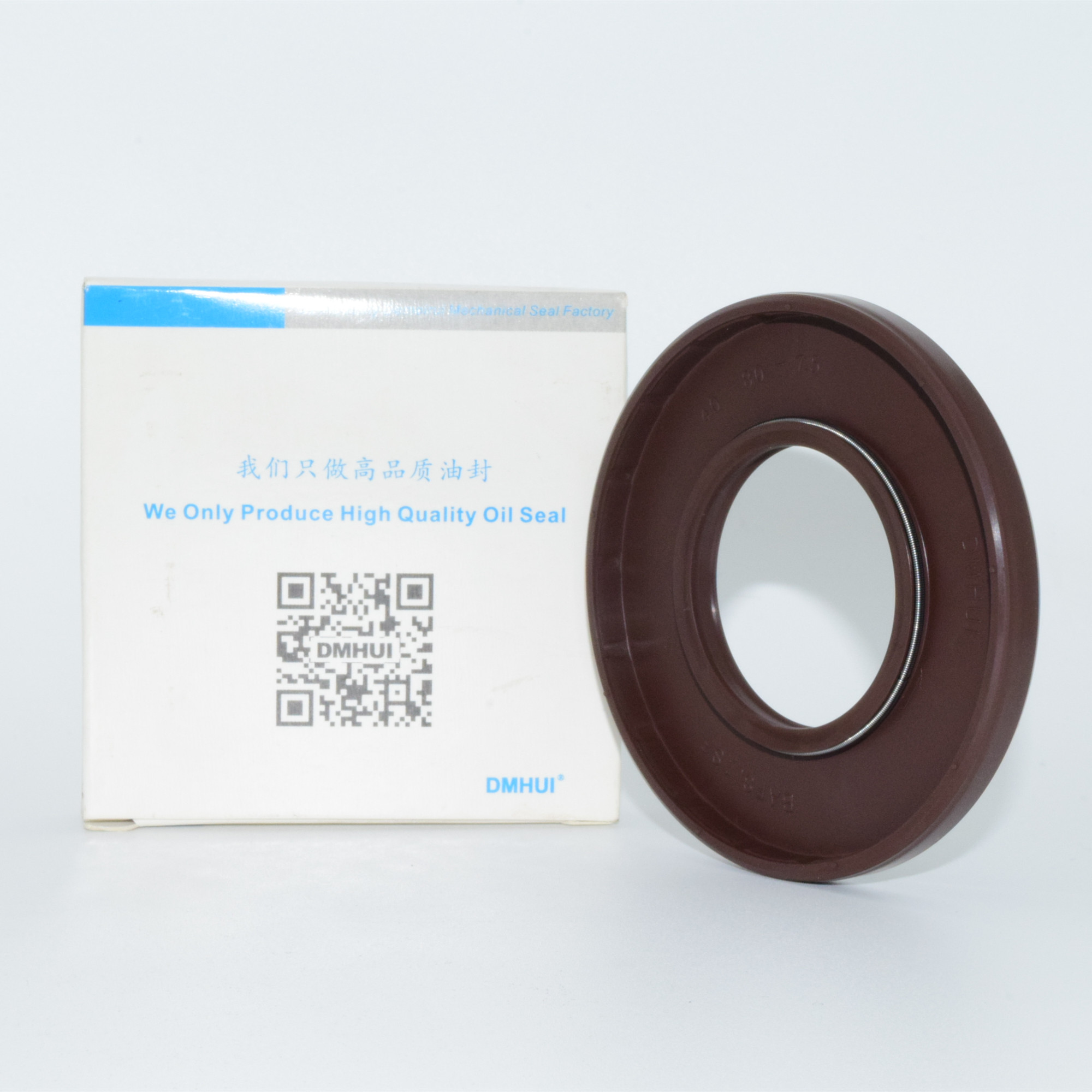

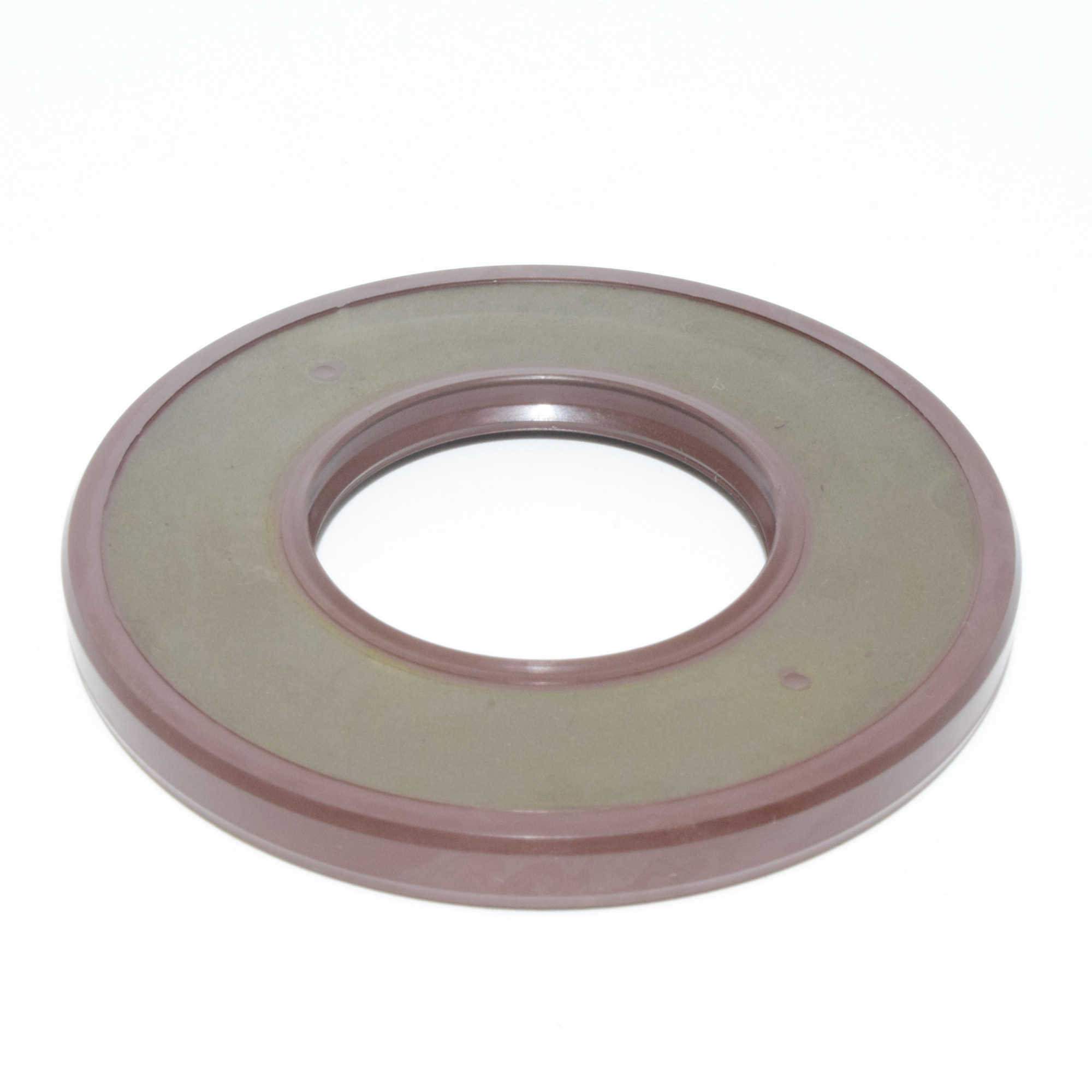

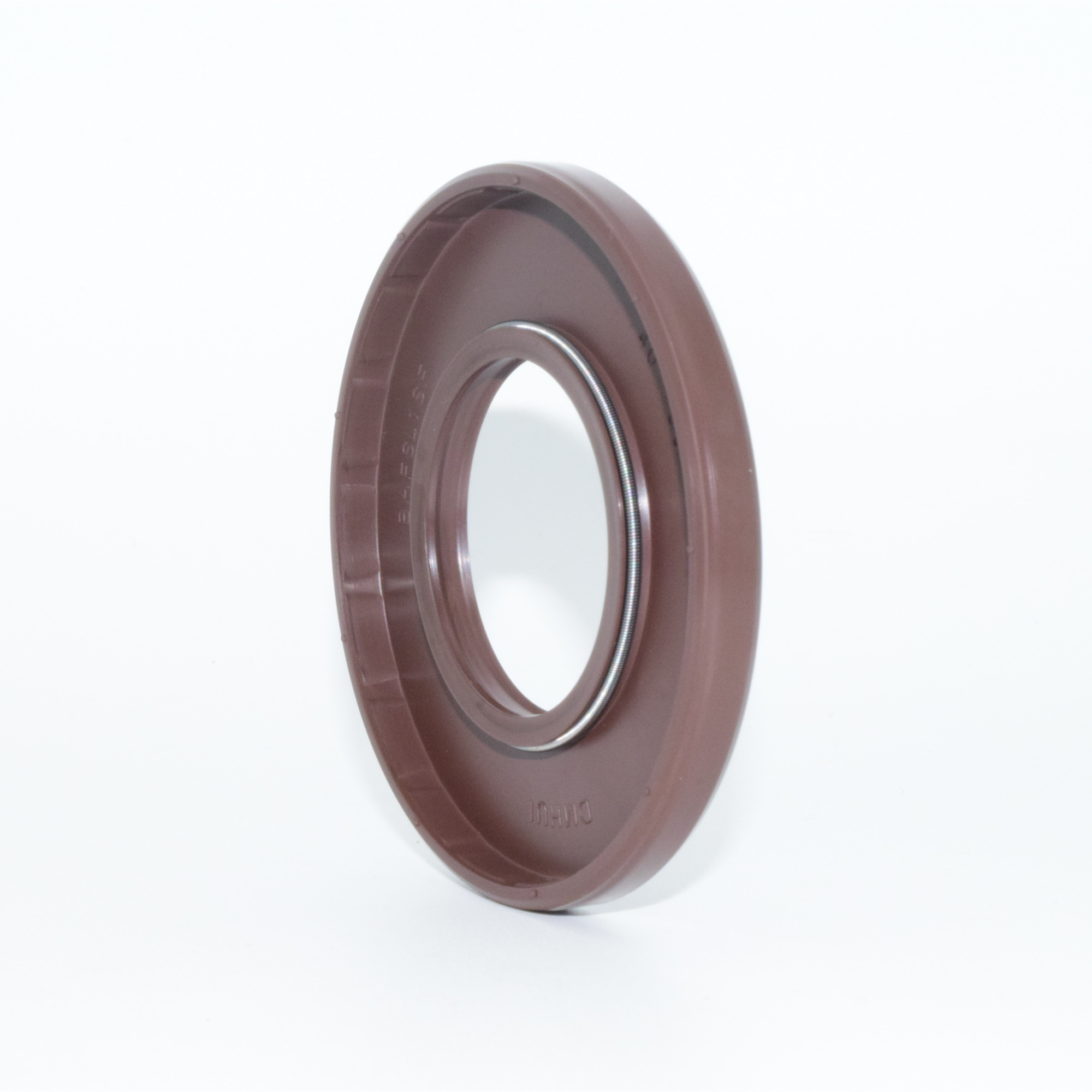

Product Name: Rotary Shaft Seal
Model: BAFSL1SF
Size: 40*80*7.5 mm
Compatible with: PV089
Material: VITON (Fluoroelastomer)
Type: BAFSL1SF
Inner Diameter: 40 mm
Outer Diameter: 80 mm
Width: 7.5 mm
Color: Brown
Structure: Single Lip with Spring
Pressure Resistance: Up to 0.05 MPa
Temperature Range: -20°C to +200°C
Hardness: 75-85 Shore A
Friction Type: Low Friction
Oil Resistance: Excellent
Chemical Resistance: High
Ozone Resistance: Yes
Weather Resistance: Yes
Installation: Press Fit
Application: PV089 rotary shaft
Sealing Direction: Internal
Design: Dust and fluid exclusion
Rotational Speed: Suitable for high speed
Durability: Long life
Maintenance: Low maintenance
Environment: Industrial use
Corrosion Resistance: Yes
Application Areas: Hydraulic pumps, Gearboxes
Vibration Resistance: High
Dust Protection: Yes
Leakage Protection: Excellent
Weight: Approx. 25g
Shape: Round
Edge Design: Chamfered
Center Hole: Precision machined
Lubrication: Required
Compliance: RoHS
Category: Rotary Seals
