Radial Seal Applications in Motor Gearboxes

By Daisy

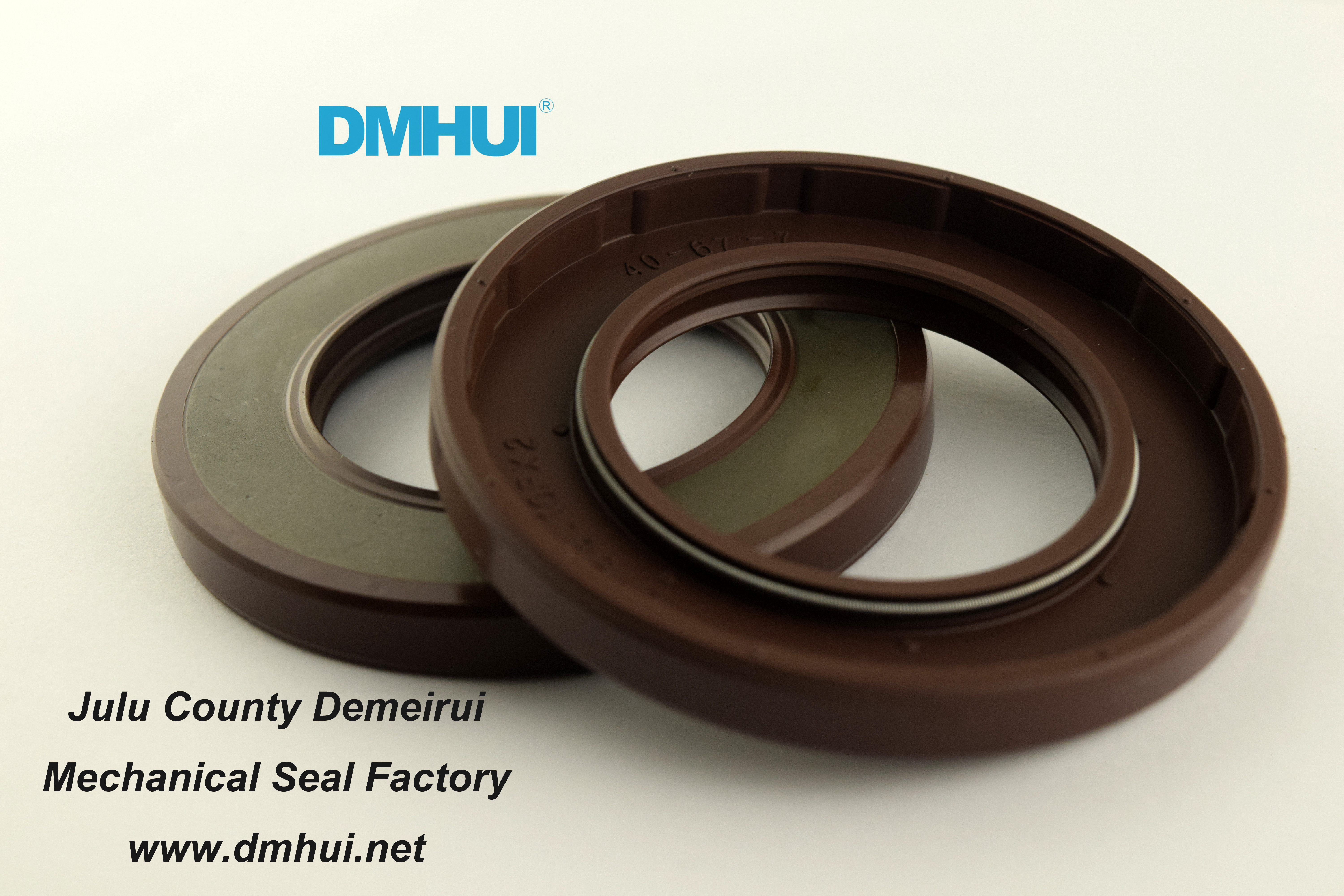

Motor gearboxes sit at the heart of modern industrial automation—driving conveyors, pumps, mixers, robotics, and material handling. Compared with many heavy reducers, motor gearboxes often see higher shaft speeds, tighter packaging, and frequent starts/stops. Those conditions put unique demands on radial shaft seals: they must control leakage while keeping friction low, managing heat, and tolerating dynamic shaft motion.

Where radial seals are used in motor gearboxes

• Input shaft sealing: often the highest speed location; low friction and heat control are critical.

• Output shaft sealing: exposed to external contamination; exclusion and shaft protection matter.

• Intermediate shafts: typically lower speed but sensitive to oil level and internal splash.

• Grease-filled stages: some compact units require seals compatible with grease thickeners and additives.

Key selection drivers: speed, temperature, and efficiency

High surface speed increases lip temperature. In servo or high-RPM applications, a low-friction design (optimized elastomer lip or PTFE-based) can reduce torque and help maintain stable temperature. Material selection should match operating heat and oil chemistry: NBR may be sufficient for moderate duty, while HNBR, FKM, or PTFE becomes attractive as heat and additive severity increase.

External environment: IP ratings and contamination exposure

Motor gearboxes frequently operate in dusty plants, near washdown, or in outdoor equipment. Adding an auxiliary excluder lip, external flinger, or a more stable carrier-style design can prevent dust and water from reaching the primary lip. If washdown is frequent, corrosion resistance of the seal case and the ability to tolerate cleaners becomes important.

Installation and surface details that prevent early leakage

• Use protective sleeves over keyways and splines to avoid lip cuts.

• Confirm shaft finish and lead control—high speed magnifies pump-out problems.

• Verify bore chamfers and press-fit interference to prevent cocked installation.

• Lubricate the lip at assembly to avoid a dry start.

Repair and upgrade options

If you see recurrent leakage, don’t immediately blame the seal. Check for bearing wear (runout), venting/pressure, and shaft grooving. A wear sleeve can restore the sealing surface quickly, and a low-friction seal upgrade can reduce heat if the duty cycle is speed-heavy.
