Product Description

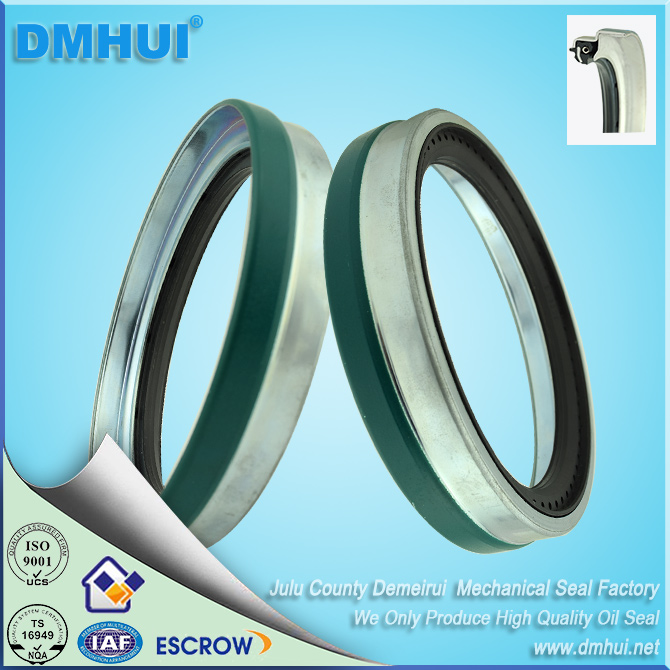

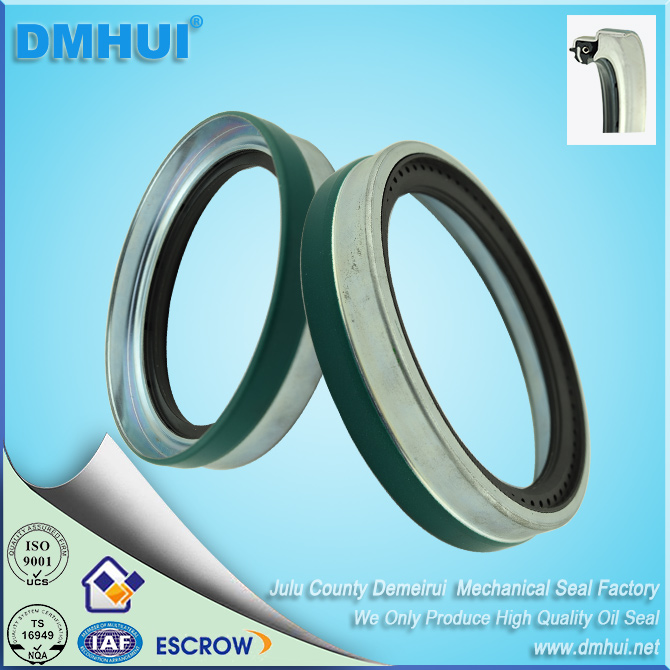

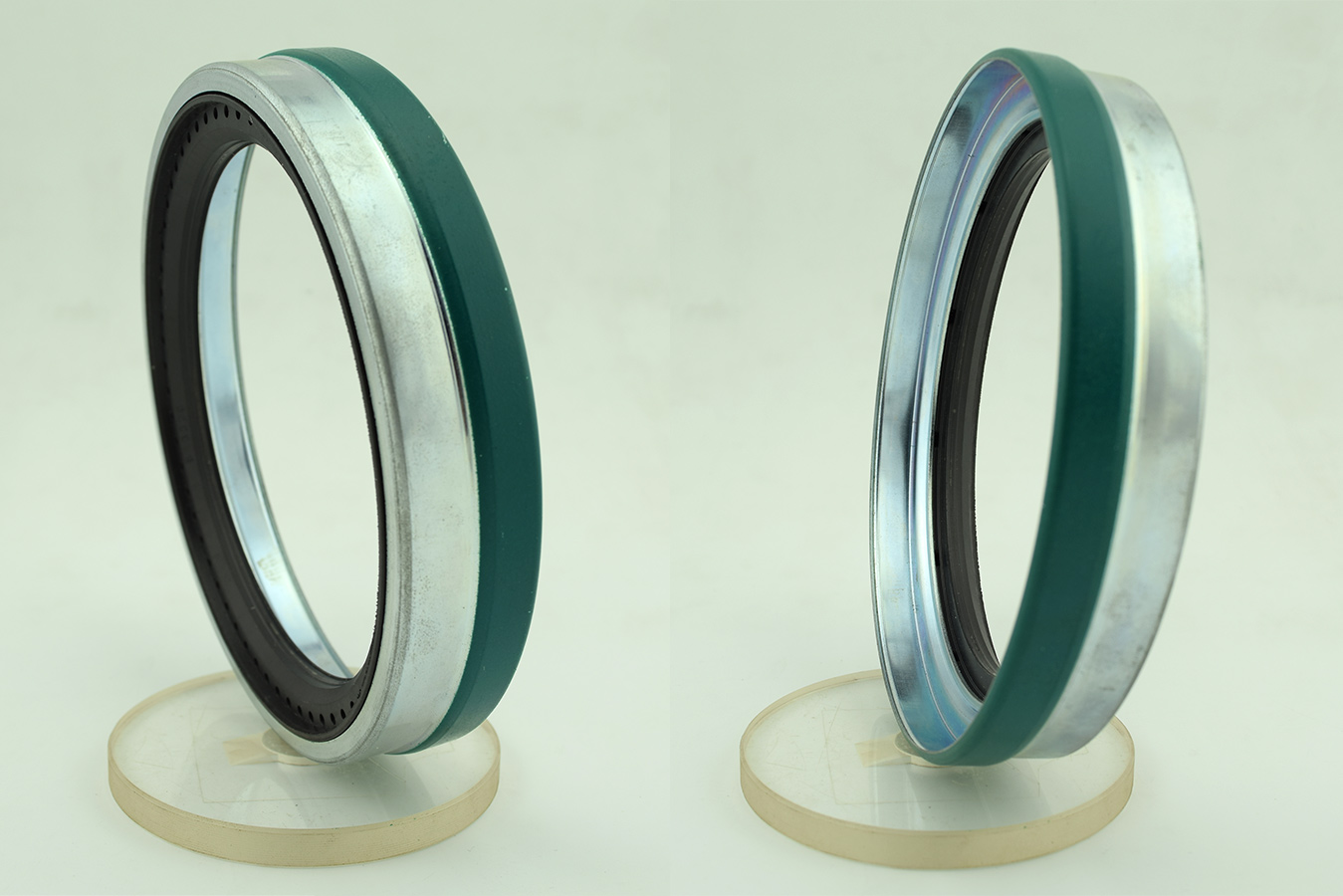

• Product Name: Agricultural Machinery Oil Seal

• Application: Agricultural Equipment

• Function: Prevents oil leakage and retains lubrication

• Material: Nitrile Rubber (NBR) / Reinforced Steel

• Inner Diameter: 117.475 mm

• Outer Diameter: 152.425 mm

• Thickness: 27 mm

• Color: Green and Silver

• Design: Single Lip with Spring

• Style: SCOT1

• Resistance: Oil, Grease, Dust, Water

• Temperature Range: -35°C to +120°C

• Hardness: 70-90 Shore A

• Pressure Resistance: Up to 0.05 MPa

• Structure: Metal-cased Rotary Shaft Seal

• Use: Rotary Motion Applications

• Installation: Interference Fit

• Seal Type: SCOT1 Style

• Seal Style: Metal Case with Rubber Sealing Lip

• Vibration Resistance: Excellent

• Corrosion Resistance: Yes

• Dynamic Use: Yes

• Static Use: Yes

• Dustproof: Yes

• Waterproof: Yes

• Ozone Resistance: Yes

• Surface Finish: Precision Machined

• Edge Style: Rounded Lip

• Reinforced: Yes, Metal Ring

• Compression Set: Minimal

• Abrasion Resistance: High

• Customizable: Yes

• OEM: Supported

• Standard: ISO/TS 16949

• Quality Control: 100% Inspection Before Delivery

• Packaging: Individual Packaging + Carton

• Certification: ISO 9001, TS 16949

• Lead Time: 5-10 Working Days

• MOQ: 100 Pieces

• Origin: China

• Usage Scene: Tractors, Combine Harvesters, Agricultural Implements
