Product Description

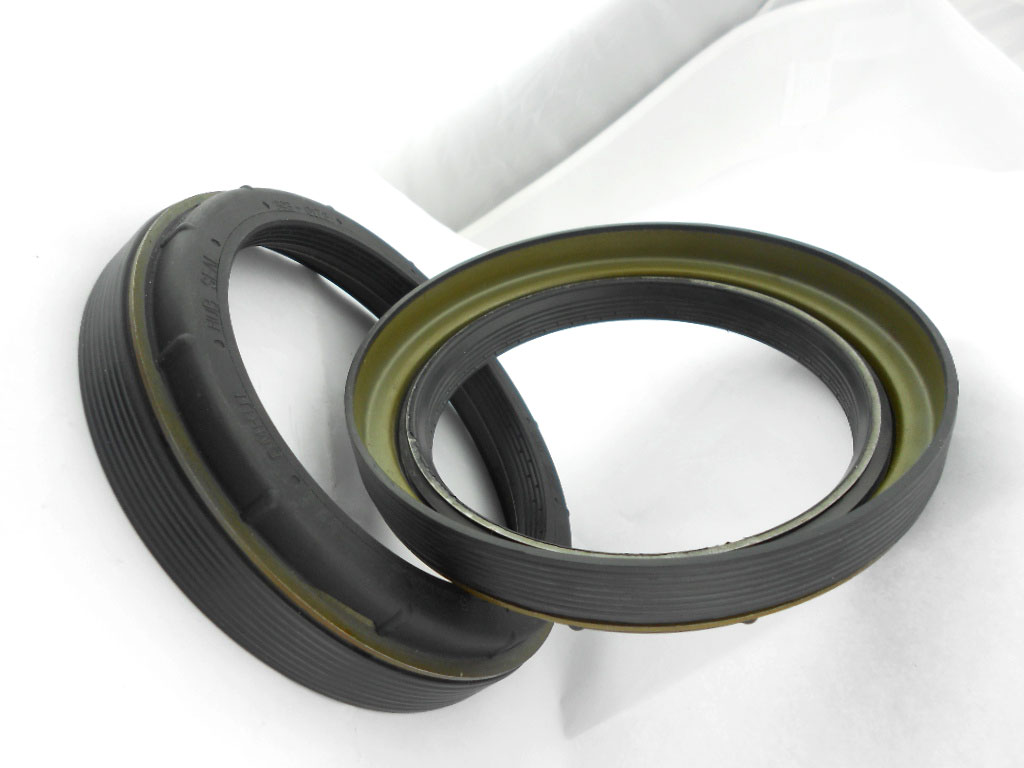

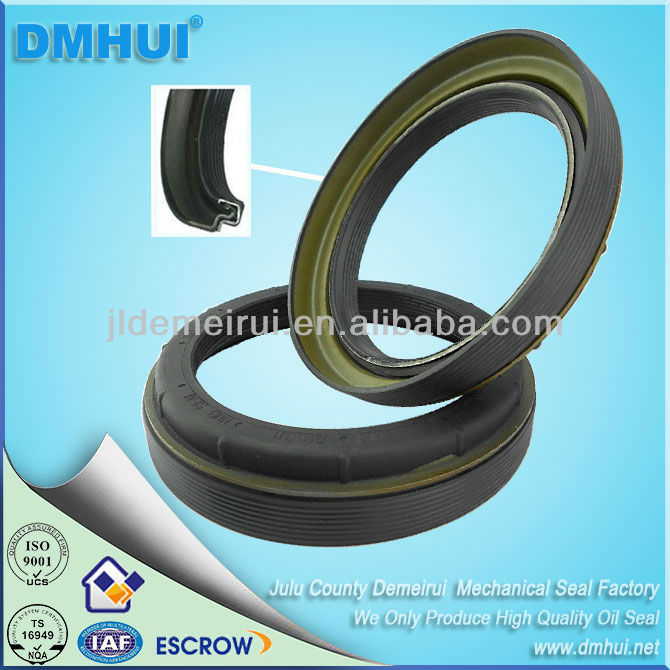

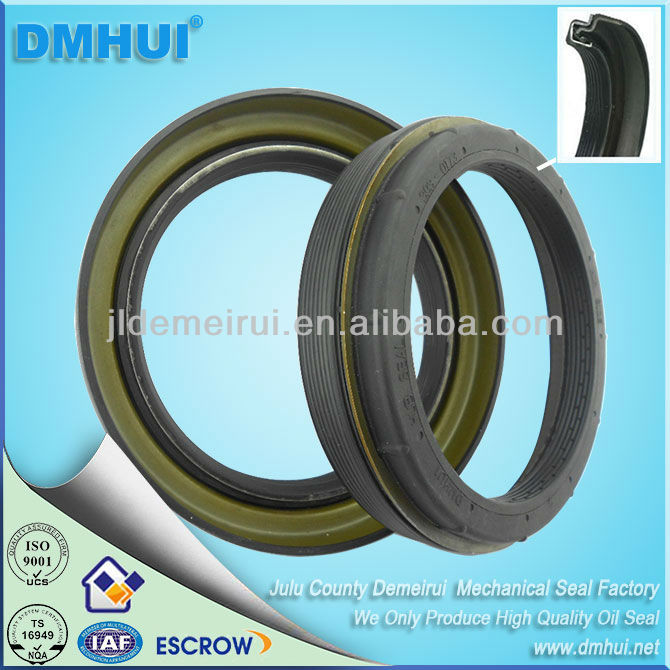

• Product Name: Agricultural Machinery Oil Seal

• Application: Agricultural Equipment

• Function: Seals rotary shafts, prevents oil leakage

• Material: Nitrile Rubber (NBR) + Metal Reinforcement

• Inner Diameter: 121 mm

• Outer Diameter: 160 mm

• Thickness: 26 mm

• Color: Black and Olive Green

• Design: Double lip with spring

• Resistance: Oil, Grease, Dust, Water

• Temperature Range: -40°C to +120°C

• Hardness: 70-90 Shore A

• Pressure Resistance: Up to 0.05 MPa

• Structure: Metal-cased radial shaft seal

• Use: Rotary sealing applications

• Installation: Press fit into housing bore

• Seal Type: Rotary Lip Seal

• Seal Style: Double lip type

• Vibration Resistance: Excellent

• Corrosion Resistance: Yes

• Dynamic Use: Yes

• Static Use: Yes

• Dustproof: Yes

• Waterproof: Yes

• Ozone Resistance: Yes

• Surface Finish: Smooth rubber coating

• Edge Style: Ribbed

• Reinforced: Yes, with internal steel ring

• Compression Set: Low

• Abrasion Resistance: High

• Customizable: Available

• OEM: Supported

• Standard: GB/T 9877

• Quality Control: 100% inspection

• Packaging: PE bag + box + export carton

• Certification: ISO 9001 / TS 16949

• Lead Time: 3–7 working days

• MOQ: 100 pcs

• Origin: China

• Usage Scene: Tractors, agricultural vehicles, harvesters
